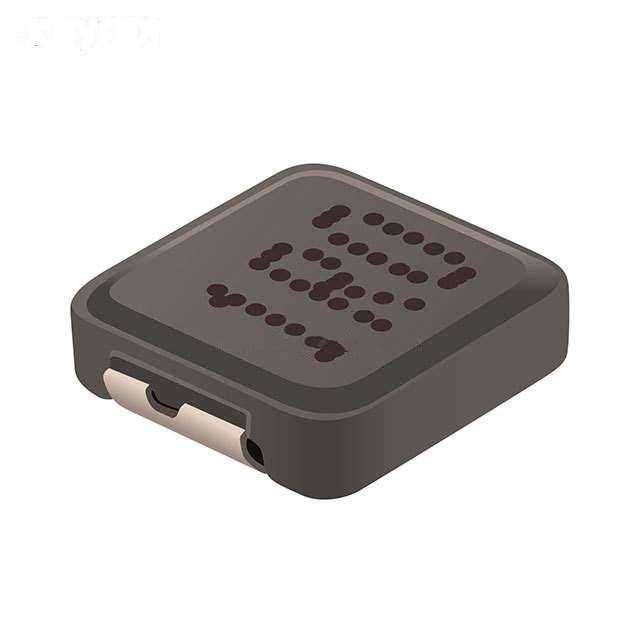

Manufacturer Part Number: | SRP5015TA-3R3M |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 12510 Pieces |
Unit Price: | Quote by Email |
Description: | 3.3µH Shielded Wirewound Inductor 3.2A 78 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRP5015TA-3R3M Datasheet |
Internal Part Number | 898-SRP5015TA-3R3M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Bourns Inductors | Digi-Key Daily | |
Featured Product | Common Mode Chip and Shielded Power Inductor Series | |
3D Model | SRP5015TA.stp | |
Online Catalog | SRP5015TA Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRP5015TA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Carbonyl Powder | |
Inductance | 3.3µH | |
Tolerance | ±20% | |
Current Rating | 3.2A | |
Current - Saturation | 4.5A | |
Shielding | Shielded | |
DC Resistance (DCR) | 78 mOhm Max | |
Q @ Freq | 10 @ 100kHz | |
Frequency - Self Resonant | 35MHz | |
Ratings | AEC-Q200 | |
Operating Temperature | -40°C ~ 150°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.205" L x 0.205" W (5.20mm x 5.20mm) | |
Height - Seated (Max) | 0.059" (1.50mm) | |
Standard Package | 3,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRP5015TA-3R3M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRP5015TA-3R3M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRP5015TA-3R3M is new and unused, you can buy SRP5015TA-3R3M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRP5015TA-3R3M.
