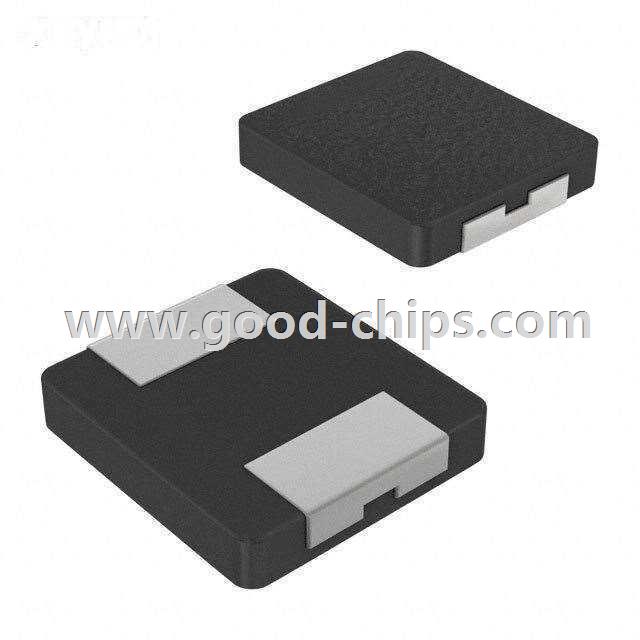

Manufacturer Part Number: | SRP4012TA-3R3M |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 3.3µH Shielded Wirewound Inductor 2.3A 97 mOhm Max 2-SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRP4012TA-3R3M Datasheet |
Internal Part Number | 898-SRP4012TA-3R3M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | SRP4012TA and SRP4020TA SMD High-Current Inductor Series SRP Series for Automotive Applications | |
3D Model | SRP4012TA Series.stp | |
Online Catalog | SRP4012TA Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRP4012TA | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Carbonyl Powder | |
Inductance | 3.3µH | |
Tolerance | ±20% | |
Current Rating | 2.3A | |
Current - Saturation | 3A | |
Shielding | Shielded | |
DC Resistance (DCR) | 97 mOhm Max | |
Q @ Freq | 10 @ 100kHz | |
Frequency - Self Resonant | 41MHz | |
Ratings | AEC-Q200 | |
Operating Temperature | -40°C ~ 150°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | 2-SMD | |
Size / Dimension | 0.175" L x 0.160" W (4.45mm x 4.06mm) | |
Height - Seated (Max) | 0.047" (1.20mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRP4012TA-3R3M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRP4012TA-3R3M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRP4012TA-3R3M is new and unused, you can buy SRP4012TA-3R3M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRP4012TA-3R3M.
