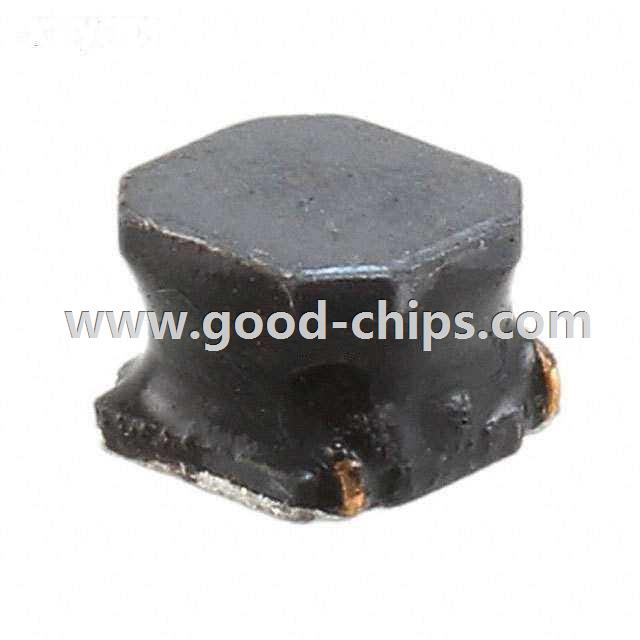

Manufacturer Part Number: | SRN5040-330M |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 33µH Unshielded Wirewound Inductor 1.2A 216 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRN5040-330M Datasheet |
Internal Part Number | 898-SRN5040-330M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | SRN Series Semi-Shielded Power Inductors | |
3D Model | SRN5040.stp | |
Online Catalog | SRN Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRN5040 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 33µH | |
Tolerance | ±20% | |
Current Rating | 1.2A | |
Current - Saturation | 1.3A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 216 mOhm Max | |
Q @ Freq | 17 @ 2.52MHz | |
Frequency - Self Resonant | 8MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | |
Height - Seated (Max) | 0.157" (4.00mm) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRN5040-330M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRN5040-330M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRN5040-330M is new and unused, you can buy SRN5040-330M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRN5040-330M.
