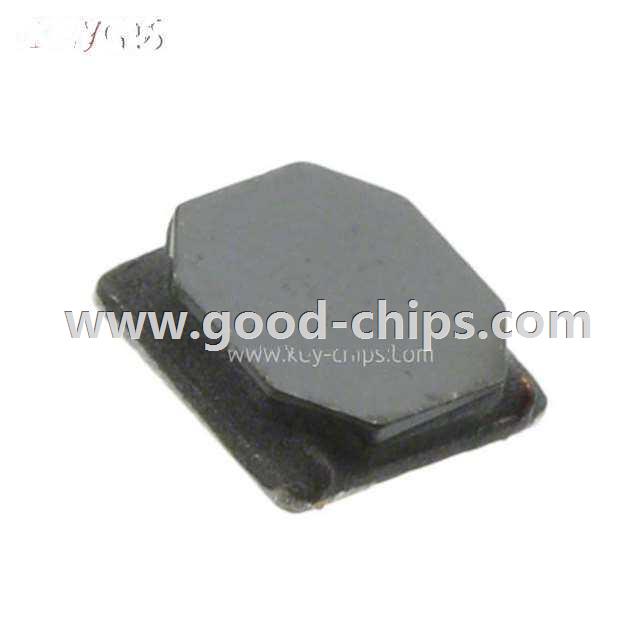

Manufacturer Part Number: | SRN4012T-2R2M |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 12756 Pieces |
Unit Price: | Quote by Email |
Description: | 2.2µH Unshielded Wirewound Inductor 1.9A 60 mOhm Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRN4012T-2R2M Datasheet |
Internal Part Number | 898-SRN4012T-2R2M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | Model SRN4012T Semi-Shielded Power Inductor Series | |
3D Model | SRN4012T.stp | |
Online Catalog | SRN Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRN4012T | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 2.2µH | |
Tolerance | ±20% | |
Current Rating | 1.9A | |
Current - Saturation | 1.65A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 60 mOhm | |
Q @ Freq | 6 @ 100kHz | |
Frequency - Self Resonant | 70MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) | |
Height - Seated (Max) | 0.047" (1.20mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRN4012T-2R2M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRN4012T-2R2M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRN4012T-2R2M is new and unused, you can buy SRN4012T-2R2M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRN4012T-2R2M.
