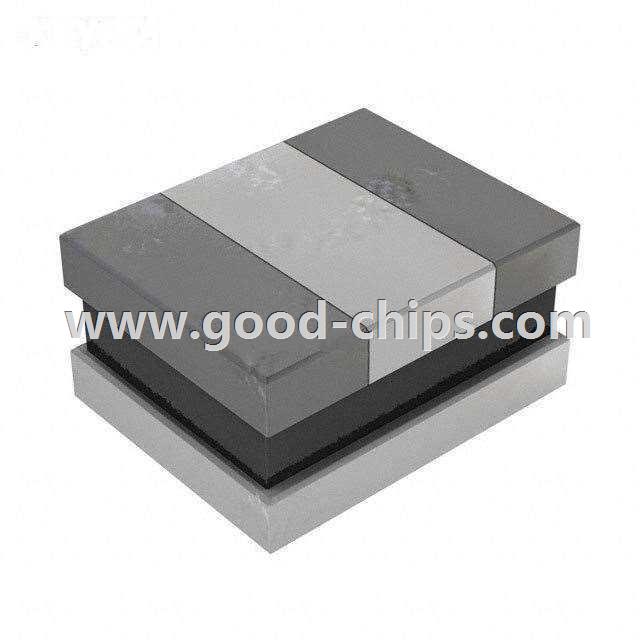

| Manufacturer Part Number: | SRN2512-R24M |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 240nH Unshielded Wirewound Inductor 4.7A 24 mOhm Max 1008 (2520 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SRN2512-R24M Datasheet |
| Internal Part Number | 898-SRN2512-R24M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | SRN Series Semi-Shielded Power Inductors | |
| 3D Model | SRN2512 Series.stp | |
| Online Catalog | SRN Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | SRN2512 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 240nH | |
| Tolerance | ±20% | |
| Current Rating | 4.7A | |
| Current - Saturation | 8A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 24 mOhm Max | |
| Q @ Freq | 7 @ 1MHz | |
| Frequency - Self Resonant | 330MHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1008 (2520 Metric) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height - Seated (Max) | 0.047" (1.20mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SRN2512-R24M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SRN2512-R24M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRN2512-R24M is new and unused, you can buy SRN2512-R24M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRN2512-R24M.
