Manufacturer Part Number: | SRN2012-1R5M |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |
Description: | 1.5µH Unshielded Wirewound Inductor 1.8A 108 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRN2012-1R5M Datasheet |
Internal Part Number | 898-SRN2012-1R5M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | SRN Series Semi-Shielded Power Inductors | |

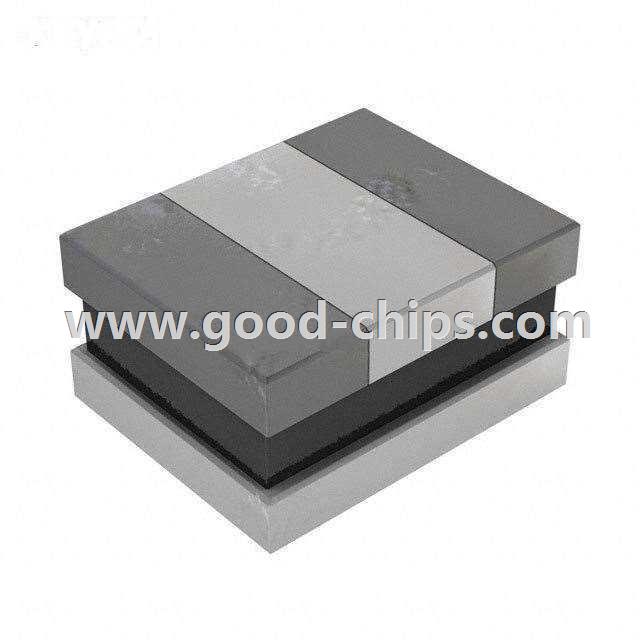

3D Model | SRN2012 Series.stp | |
Online Catalog | SRN Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRN2012 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 1.5µH | |
Tolerance | ±20% | |
Current Rating | 1.8A | |
Current - Saturation | 2A | |
Shielding | Unshielded | |
DC Resistance (DCR) | 108 mOhm Max | |
Q @ Freq | 12 @ 1MHz | |
Frequency - Self Resonant | 90MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 1MHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) | |
Height - Seated (Max) | 0.047" (1.20mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRN2012-1R5M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRN2012-1R5M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRN2012-1R5M is new and unused, you can buy SRN2012-1R5M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRN2012-1R5M.
