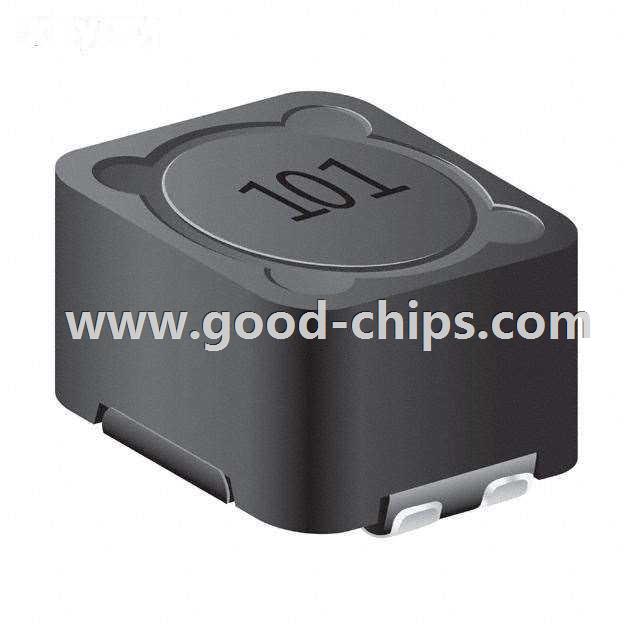

| Manufacturer Part Number: | SRF1280-101M |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 9410 Pieces |
| Unit Price: | Quote by Email |
| Description: | Shielded 2 Coil Inductor Array 400µH Inductance - Connected in Series 100µH Inductance - Connected in Parallel 175 mOhm Max DC Resistance (DCR) - Parallel 1.96A Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SRF1280-101M Datasheet |
| Internal Part Number | 898-SRF1280-101M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | SRF1280 Series Material Declaration | |
| 3D Model | SRF1280.stp | |
| PCN Design/Specification | SRF1260,1280 Series Epoxy Oct/2012 | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| Online Catalog | SRF Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Bourns Inc. | |
| Series | SRF1280 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 400µH | |
| Inductance - Connected In Parallel | 100µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 1.96A | |
| Current Rating - Series | 980mA | |
| Current Saturation - Parallel | 3.64A | |
| Current Saturation - Series | 1.82A | |
| DC Resistance (DCR) - Parallel | 175 mOhm Max | |
| DC Resistance (DCR) - Series | 701 mOhm Max | |
| Shielding | Shielded | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | |
| Height | 0.315" (8.00mm) | |
| Standard Package | 400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SRF1280-101M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SRF1280-101M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRF1280-101M is new and unused, you can buy SRF1280-101M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRF1280-101M.
