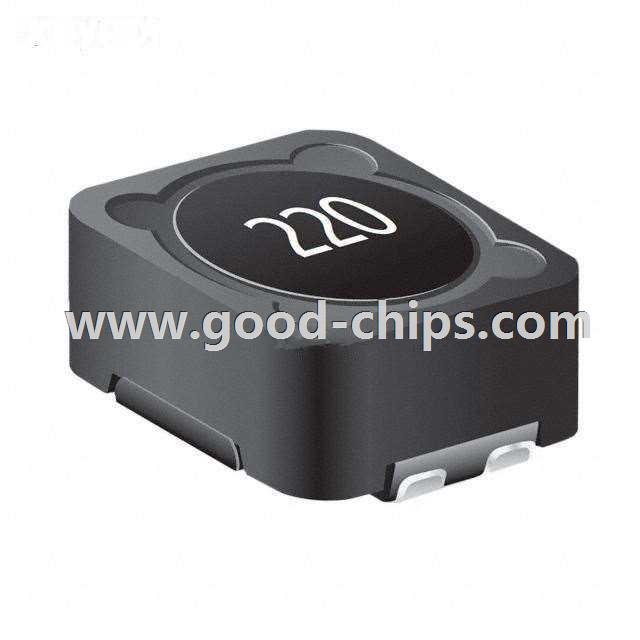

| Manufacturer Part Number: | SRF1260A-4R7Y |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Arrays, Signal Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Shielded 2 Coil Inductor Array 18.8µH Inductance - Connected in Series 4.7µH Inductance - Connected in Parallel 13.7 mOhm Max DC Resistance (DCR) - Parallel 7.18A Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SRF1260A-4R7Y Datasheet |
| Internal Part Number | 898-SRF1260A-4R7Y | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| Online Catalog | Automotive, AEC-Q200, SRF1260A Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Arrays, Signal Transformers | |
| Manufacturer | Bourns Inc. | |
| Series | Automotive, AEC-Q200, SRF1260A | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 18.8µH | |
| Inductance - Connected In Parallel | 4.7µH | |
| Tolerance | ±30% | |
| Current Rating - Parallel | 7.18A | |
| Current Rating - Series | 3.59A | |
| Current Saturation - Parallel | 9.71A | |
| Current Saturation - Series | 4.86A | |
| DC Resistance (DCR) - Parallel | 13.7 mOhm Max | |
| DC Resistance (DCR) - Series | 47.9 mOhm Max | |
| Shielding | Shielded | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | |
| Height | 0.244" (6.20mm) | |
| Standard Package | 400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SRF1260A-4R7Y | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SRF1260A-4R7Y is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRF1260A-4R7Y is new and unused, you can buy SRF1260A-4R7Y Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRF1260A-4R7Y.
