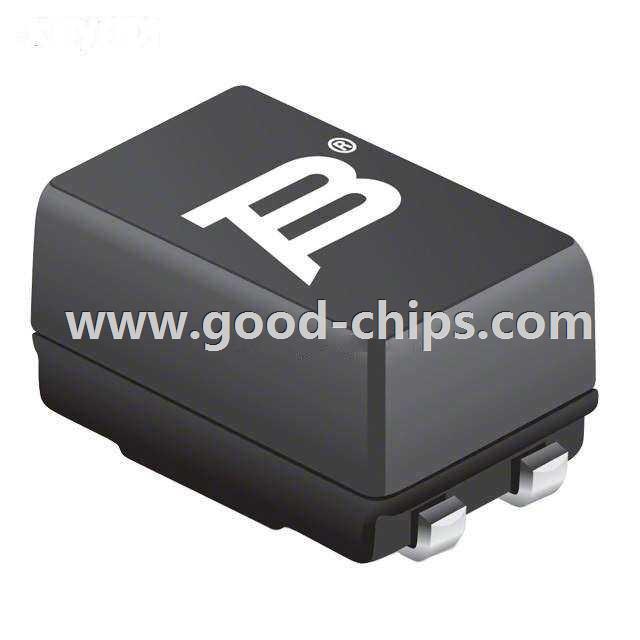

| Manufacturer Part Number: | SRF0905-100Y |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10µH @ 1kHz 2 Line Common Mode Choke Surface Mount 200 Ohm @ 20MHz 1.6A DCR 80 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SRF0905-100Y Datasheet |
| Internal Part Number | 898-SRF0905-100Y | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | SRF0905 Series Material Declaration | |
| 3D Model | SRF0905.stp | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| Online Catalog | SRF0905 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Bourns Inc. | |
| Series | SRF0905 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 200 Ohm @ 20MHz | |
| Inductance @ Frequency | 10µH @ 1kHz | |
| Current Rating (Max) | 1.6A | |
| DC Resistance (DCR) (Max) | 80 mOhm | |
| Voltage Rating - DC | 80V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.362" L x 0.236" W (9.20mm x 6.00mm) | |
| Height (Max) | 0.209" (5.30mm) | |
| Package / Case | Horizontal, 4 PC Pad | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SRF0905-100Y | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SRF0905-100Y is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRF0905-100Y is new and unused, you can buy SRF0905-100Y Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRF0905-100Y.
