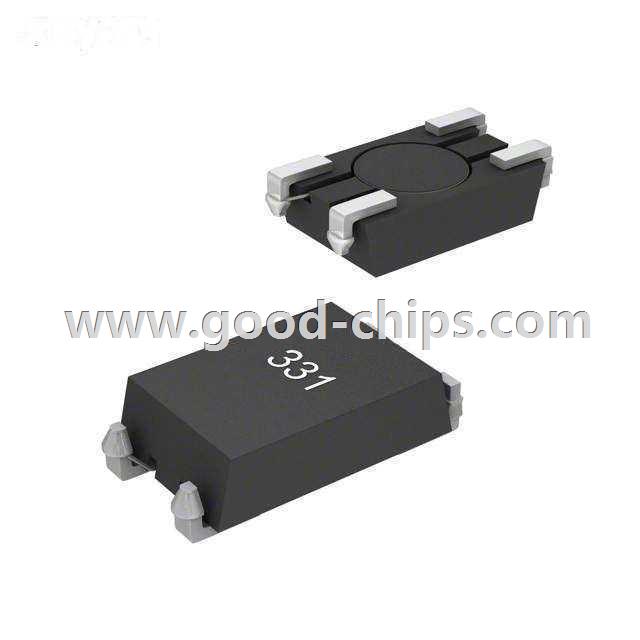

| Manufacturer Part Number: | SRF0602-100Y |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10µH @ 10kHz 2 Line Common Mode Choke Surface Mount 600 Ohm @ 35MHz 300mA DCR 240 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SRF0602-100Y Datasheet |
| Internal Part Number | 898-SRF0602-100Y | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | SRF0602 Series Material Declaration | |
| 3D Model | SRF0602.stp | |
| PCN Design/Specification | SRF0602 Terminal Removal Jun/2010 | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| Online Catalog | SRF0602 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Bourns Inc. | |
| Series | SRF0602 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 600 Ohm @ 35MHz | |
| Inductance @ Frequency | 10µH @ 10kHz | |
| Current Rating (Max) | 300mA | |
| DC Resistance (DCR) (Max) | 240 mOhm | |
| Voltage Rating - DC | 50V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.256" L x 0.142" W (6.50mm x 3.60mm) | |
| Height (Max) | 0.071" (1.80mm) | |
| Package / Case | Horizontal, 4 PC Pad | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SRF0602-100Y | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SRF0602-100Y is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRF0602-100Y is new and unused, you can buy SRF0602-100Y Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRF0602-100Y.
