Manufacturer Part Number: | SRCB06A21-26P-(13) |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Circular Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

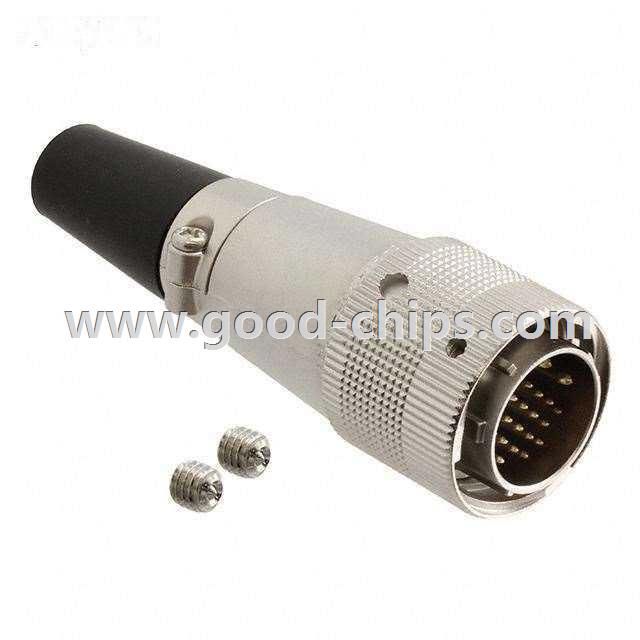

Description: | 26 Position Circular Connector Plug, Male Pins Solder Cup |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRCB06A21-26P-(13) Datasheet |
Internal Part Number | 898-SRCB06A21-26P-(13) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple devices Apr/2013 | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | JAE Electronics | |
Series | SRCB | |
Packaging | Tray | |
Part Status | Obsolete | |
Connector Type | Plug, Male Pins | |
Number of Positions | 26 | |
Shell Size - Insert | 21-26 | |
Shell Size, MIL | - | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Solder Cup | |
Fastening Type | Bayonet Lock | |
Orientation | Keyed | |
Ingress Protection | - | |
Shell Material, Finish | - | |
Contact Finish | - | |
Features | Backshell | |
Contact Finish Thickness | - | |
Current Rating | 5A, 10A | |
Voltage - Rated | - | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRCB06A21-26P-(13) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRCB06A21-26P-(13) is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of SRCB06A21-26P-(13) is new and unused, you can buy SRCB06A21-26P-(13) JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRCB06A21-26P-(13).
