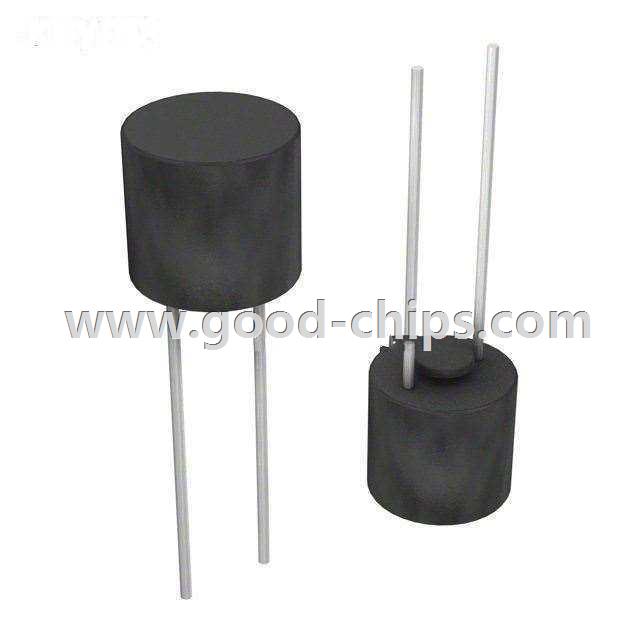

Manufacturer Part Number: | SR-5H-4A-BK |
---|---|
Manufacturer: | Eaton |
Product Category: | Fuses |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | FUSE BOARD MOUNT 4A 300VAC RAD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SR-5H-4A-BK Datasheet |
Internal Part Number | 898-SR-5H-4A-BK | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014 | |
Category | Circuit Protection | |
Family | Fuses | |
Manufacturer | Eaton | |
Series | SR-5H | |
Packaging | Bulk | |
Part Status | Active | |
Fuse Type | Board Mount (Cartridge Style Excluded) | |
Current Rating | 4A | |
Voltage Rating - AC | 300V | |
Voltage Rating - DC | - | |
Response Time | Slow | |
Package / Case | Radial, Can, Vertical | |
Mounting Type | Through Hole | |
Breaking Capacity @ Rated Voltage | 100A | |
Melting I²t | 80 | |
Approvals | CCC, cULus, KC-MARK, PSE, SEMKO, VDE | |
Operating Temperature | -40°C ~ 85°C | |
Color | - | |
Size / Dimension | 0.335" Dia x 0.362" H (8.50mm x 9.20mm) | |
DC Cold Resistance | 0.013 Ohm | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SR-5H-4A-BK | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SR-5H-4A-BK is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of SR-5H-4A-BK is new and unused, you can buy SR-5H-4A-BK Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SR-5H-4A-BK.
