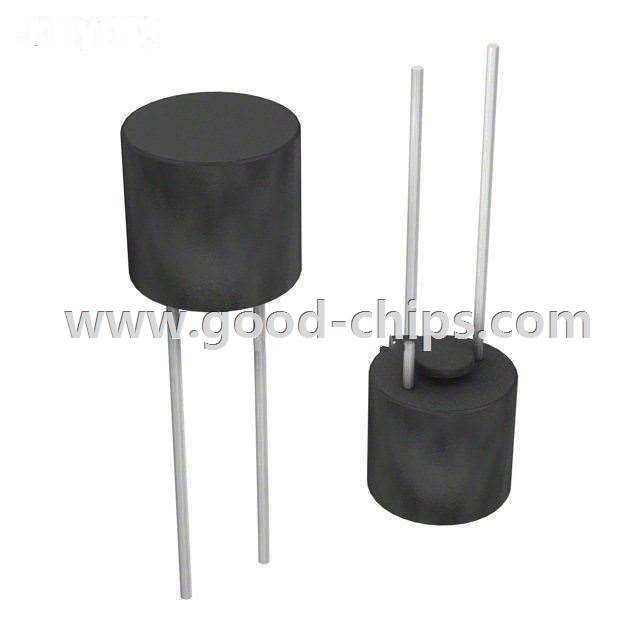

| Manufacturer Part Number: | SR-5H-1A-AP |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuses |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BOARD MNT 1A 300VAC RADIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SR-5H-1A-AP Datasheet |
| Internal Part Number | 898-SR-5H-1A-AP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014 | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Eaton | |
| Series | SR-5H | |
| Packaging | Tape & Box (TB) | |
| Part Status | Active | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating | 1A | |
| Voltage Rating - AC | 300V | |
| Voltage Rating - DC | - | |
| Response Time | Slow | |
| Package / Case | Radial, Can, Vertical | |
| Mounting Type | Through Hole | |
| Breaking Capacity @ Rated Voltage | 100A | |
| Melting I²t | 7.5 | |
| Approvals | CCC, cULus, KC-MARK, PSE, SEMKO, VDE | |
| Operating Temperature | -40°C ~ 85°C | |
| Color | - | |
| Size / Dimension | 0.335" Dia x 0.362" H (8.50mm x 9.20mm) | |
| DC Cold Resistance | 0.081 Ohm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SR-5H-1A-AP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SR-5H-1A-AP is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of SR-5H-1A-AP is new and unused, you can buy SR-5H-1A-AP Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SR-5H-1A-AP.
