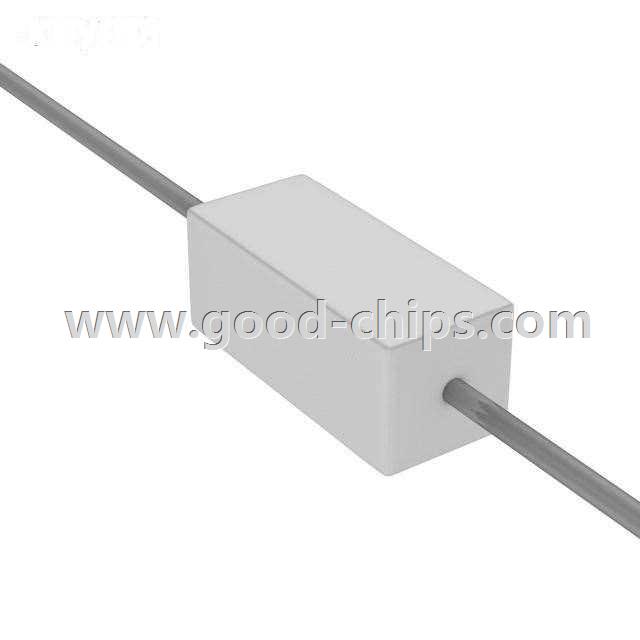

| Manufacturer Part Number: | SQP500JB-560R |
|---|---|
| Manufacturer: | Yageo |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 12094 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 560 OHM 5W 5% AXIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SQP500JB-560R Datasheet |
| Internal Part Number | 898-SQP500JB-560R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Leaded Resistors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SQP Series | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Yageo | |
| Series | SQP | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 560 | |
| Tolerance | ±5% | |
| Power (Watts) | 5W | |
| Composition | Metal Oxide Film | |
| Features | Anti-Arc, Flame Proof, Moisture Resistant, Safety | |
| Temperature Coefficient | - | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | Axial | |
| Supplier Device Package | Axial | |
| Size / Dimension | 0.374" x 0.354" Rectangular x 0.866" L (9.50mm x 9.00mm x 22.00mm) | |
| Height | - | |
| Number of Terminations | 2 | |
| Standard Package | 900 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SQP500JB-560R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SQP500JB-560R is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of SQP500JB-560R is new and unused, you can buy SQP500JB-560R Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SQP500JB-560R.
