| Manufacturer Part Number: | SPIRIT1QTR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 14372 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU General ISM < 1GHz 150MHz ~ 174MHz, 300MHz ~ 348MHz, 387MHz ~ 470MHz, 779MHz ~ 956MHz 20-VFQFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SPIRIT1QTR Datasheet |
| Internal Part Number | 898-SPIRIT1QTR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SPIRIT1 View All Specifications | |
| Product Training Modules | SPIRIT1 RF Transceiver Overview Smart Grid Solutions: Smart Grid Distribution/Smart Meters Healthcare and Wellness Internet of Things and the ST Portfolio of Wireless Modules Dynamic NFC / RFID Tag WiFi Modules Overview | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | Spirit1 Transceiver Bluetooth LE, Sub GHz RF Transceivers and Micro-Sized Modules | |
| Online Catalog | SPIRIT1 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | TxRx + MCU | |
| RF Family/Standard | General ISM < 1GHz | |
| Protocol | - | |
| Modulation | 2FSK, ASK, GFSK, GMSK, MSK, OOK | |
| Frequency | 150MHz ~ 174MHz, 300MHz ~ 348MHz, 387MHz ~ 470MHz, 779MHz ~ 956MHz | |
| Data Rate (Max) | 500kbps | |
| Power - Output | 16dBm | |
| Sensitivity | -118dBm | |
| Memory Size | - | |
| Serial Interfaces | SPI | |
| GPIO | 4 | |
| Voltage - Supply | 1.8 V ~ 3.6 V | |
| Current - Receiving | 9.2mA ~ 9.8mA | |
| Current - Transmitting | 6mA ~ 54mA | |
| Operating Temperature | -40°C ~ 105°C | |

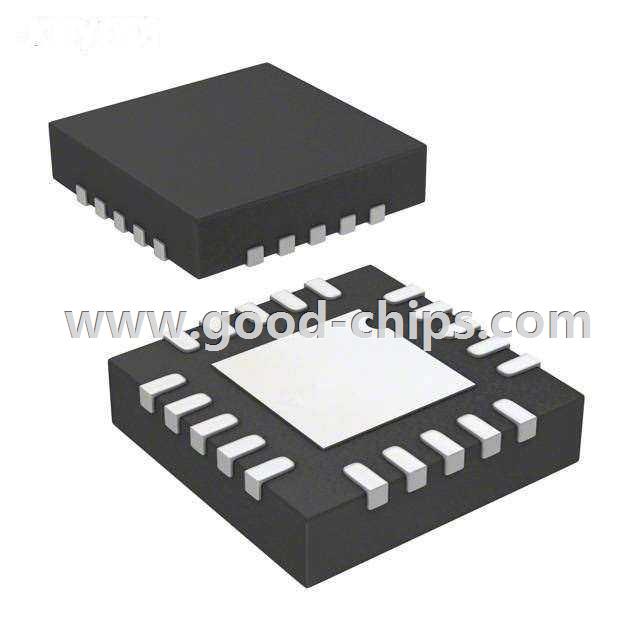

| Package / Case | 20-VFQFN Exposed Pad | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SPIRIT1QTR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SPIRIT1QTR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of SPIRIT1QTR is new and unused, you can buy SPIRIT1QTR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SPIRIT1QTR.
