Manufacturer Part Number: | SPHV15-01KTG-C |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 15VWM 30VC SOD882 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SPHV15-01KTG-C Datasheet |
Internal Part Number | 898-SPHV15-01KTG-C | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Automotive, AEC-Q101, SPHV and SPHV-C, SPA® Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Littelfuse Inc. | |
Series | Automotive, AEC-Q101, SPHV-C, SPA® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | - | |
Bidirectional Channels | 1 | |
Voltage - Reverse Standoff (Typ) | 15V (Max) | |
Voltage - Breakdown (Min) | 16.7V | |
Voltage - Clamping (Max) @ Ipp | 30V | |
Current - Peak Pulse (10/1000µs) | 5A (8/20µs) | |
Power - Peak Pulse | 200W | |
Power Line Protection | No | |
Applications | Automotive | |
Capacitance @ Frequency | 24pF @ 1MHz | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

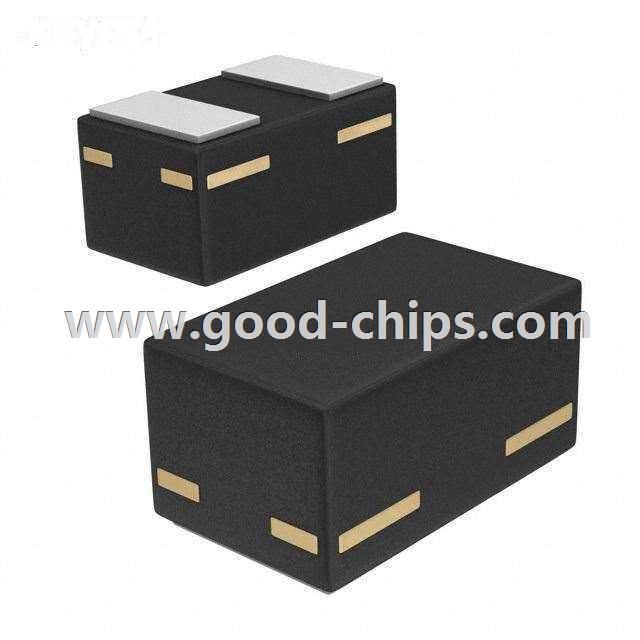

Package / Case | SOD-882 | |
Supplier Device Package | SOD-882 | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SPHV15-01KTG-C | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SPHV15-01KTG-C is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SPHV15-01KTG-C is new and unused, you can buy SPHV15-01KTG-C Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SPHV15-01KTG-C.
