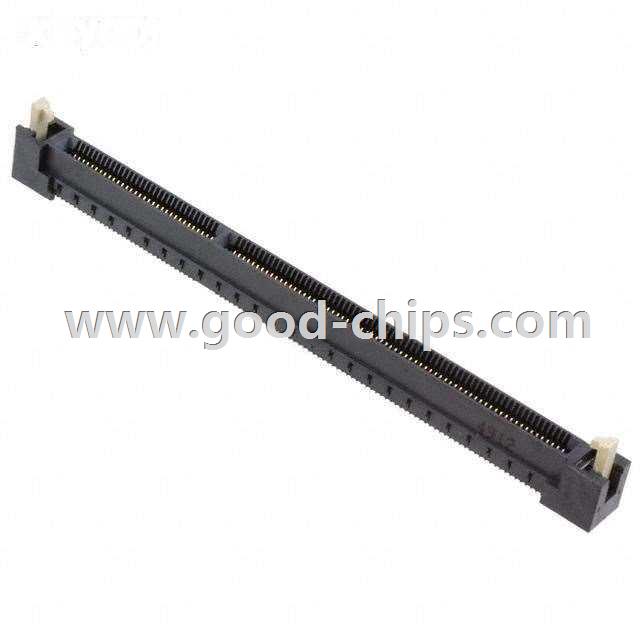

| Manufacturer Part Number: | SPD08-200-L-RB-TR |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Card Edge Connectors - Edgeboard Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN HIGH SPD CARD EDGE 200 POS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SPD08-200-L-RB-TR Datasheet |
| Internal Part Number | 898-SPD08-200-L-RB-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | SPD08 Series of High-Speed Card-Edge Connectors | |
| 3D Model | SPD08-200-L-XX-XX.igs SPD08-200-L-XX-XX.x_t SPD08-200-L-XX-XX.stp | |
| Category | Connectors, Interconnects | |
| Family | Card Edge Connectors - Edgeboard Connectors | |
| Manufacturer | 3M | |
| Series | SPD08 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Discontinued | |
| Card Type | Non Specified - Dual Edge | |
| Gender | Female | |
| Number of Positions/Bay/Row | - | |
| Number of Positions | 200 | |
| Card Thickness | 0.062" (1.57mm) | |
| Number of Rows | 2 | |
| Pitch | 0.031" (0.80mm) | |
| Features | Board Guide, Latches | |
| Mounting Type | Surface Mount | |
| Termination | Solder | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Contact Type | Cantilever | |
| Color | Black | |
| Flange Feature | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Material - Insulation | Liquid Crystal Polymer (LCP), Glass Filled | |
| Read Out | Dual | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SPD08-200-L-RB-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SPD08-200-L-RB-TR is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of SPD08-200-L-RB-TR is new and unused, you can buy SPD08-200-L-RB-TR 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SPD08-200-L-RB-TR.
