| Manufacturer Part Number: | SPC564A80B4CFAR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | e200z4 SPC56 Microcontroller IC 32-Bit 150MHz 4MB (4M x 8) FLASH 324-PBGA (23x23) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SPC564A80B4CFAR Datasheet |
| Internal Part Number | 898-SPC564A80B4CFAR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SPC564A80B4 View All Specifications | |
| Design Resources | Development Tool Selector | |
| Online Catalog | SPC56 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | STMicroelectronics | |
| Series | SPC56 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Core Processor | e200z4 | |
| Core Size | 32-Bit | |
| Speed | 150MHz | |
| Connectivity | CAN, EBI/EMI, LIN, SCI, SPI | |
| Peripherals | DMA, POR, PWM, WDT | |
| Number of I/O | 190 | |
| Program Memory Size | 4MB (4M x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 192K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.14 V ~ 1.32 V | |
| Data Converters | A/D 40x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 125°C (TA) | |

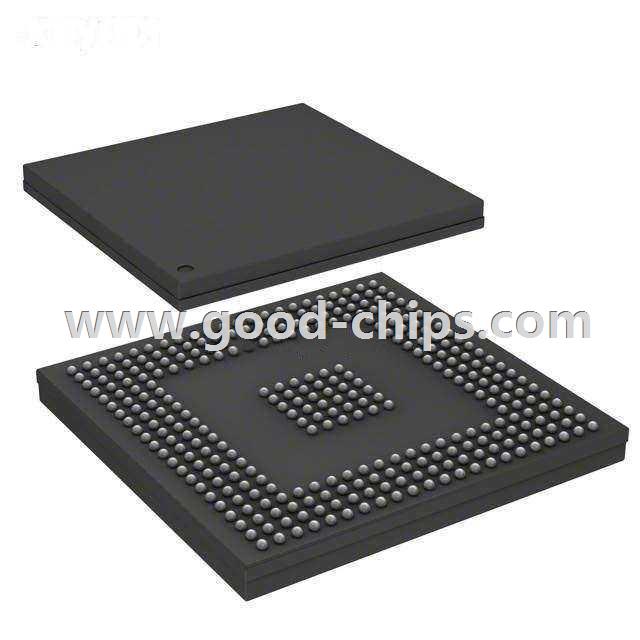

| Package / Case | 324-BGA | |
| Supplier Device Package | 324-PBGA (23x23) | |
| Standard Package | 350 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SPC564A80B4CFAR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SPC564A80B4CFAR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of SPC564A80B4CFAR is new and unused, you can buy SPC564A80B4CFAR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SPC564A80B4CFAR.
