| Manufacturer Part Number: | SP7662ER-L |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9448 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 12A 26-VFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SP7662ER-L Datasheet |
| Internal Part Number | 898-SP7662ER-L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Metal Layer Update 14/Sep/2015 | |
| PCN Other | Multiple Changes 04/Oct/2013 | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Exar Corporation | |
| Series | Power Blox™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 5V | |
| Voltage - Input (Max) | 22V | |
| Voltage - Output (Min/Fixed) | 0.8V | |
| Voltage - Output (Max) | 20.24V | |
| Current - Output | 12A | |
| Frequency - Switching | 300kHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

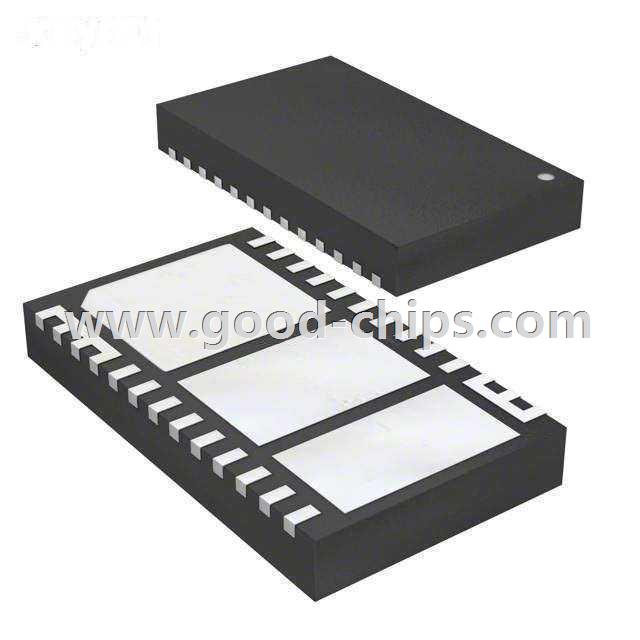

| Package / Case | 26-VFDFN Exposed Pad | |
| Supplier Device Package | 26-DFN (7x4) | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SP7662ER-L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SP7662ER-L is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of SP7662ER-L is new and unused, you can buy SP7662ER-L Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP7662ER-L.
