| Manufacturer Part Number: | SP6136ER1-L |
|---|---|
| Manufacturer: | Exar Corporation |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-QFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SP6136ER1-L Datasheet |
| Internal Part Number | 898-SP6136ER1-L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Part Status Change | Not Available 26/Jul/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Exar Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Discontinued | |
| Output Type | Transistor Driver | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Number of Outputs | 1 | |
| Output Phases | 1 | |
| Voltage - Supply (Vcc/Vdd) | 5 V ~ 24 V | |
| Frequency - Switching | 600kHz | |
| Duty Cycle (Max) | 100% | |
| Synchronous Rectifier | Yes | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Enable, Power Good, Soft Start | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

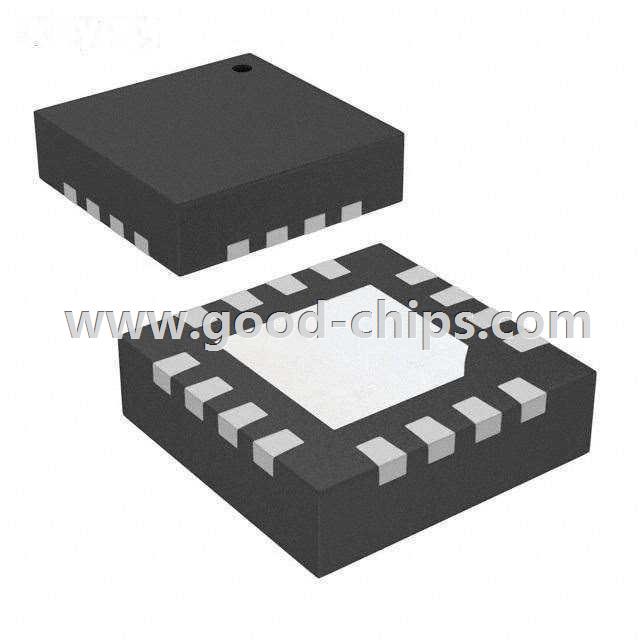

| Package / Case | 16-VFQFN Exposed Pad | |
| Supplier Device Package | 16-QFN (3x3) | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SP6136ER1-L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SP6136ER1-L is in stock for immediate shipping now. We are the distributor of Exar Corporation all series components. The condition of SP6136ER1-L is new and unused, you can buy SP6136ER1-L Exar Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP6136ER1-L.
