| Manufacturer Part Number: | SP5001-04TTG |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Line Common Mode Choke Surface Mount 100mA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SP5001-04TTG Datasheet |
| Internal Part Number | 898-SP5001-04TTG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Littelfuse - TVS Diode Array, CM-EMI Filtering and ESD, SP5000 Series | |
| Online Catalog | SP5001, SP5002 and SP5003 Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Littelfuse Inc. | |
| Series | SP5001 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 4 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 100mA | |
| DC Resistance (DCR) (Max) | - | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Ratings | AEC-Q101 | |
| Approvals | - | |
| Features | ESD | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height (Max) | 0.031" (0.80mm) | |

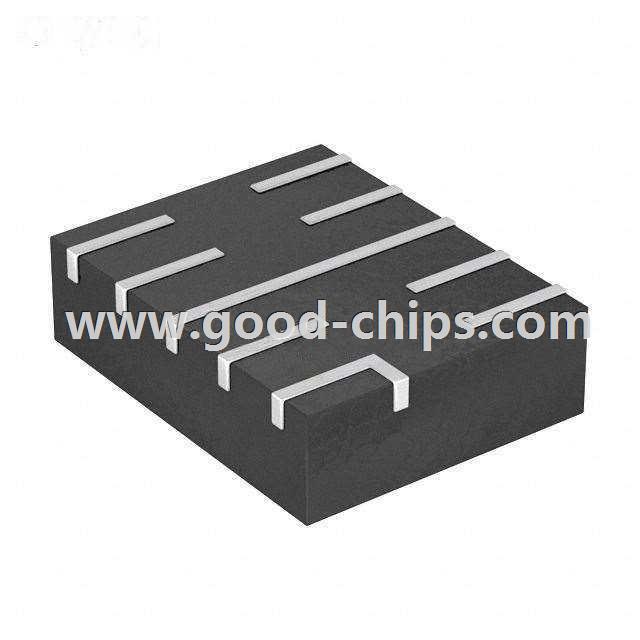

| Package / Case | 10-WFDFN | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SP5001-04TTG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SP5001-04TTG is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SP5001-04TTG is new and unused, you can buy SP5001-04TTG Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP5001-04TTG.
