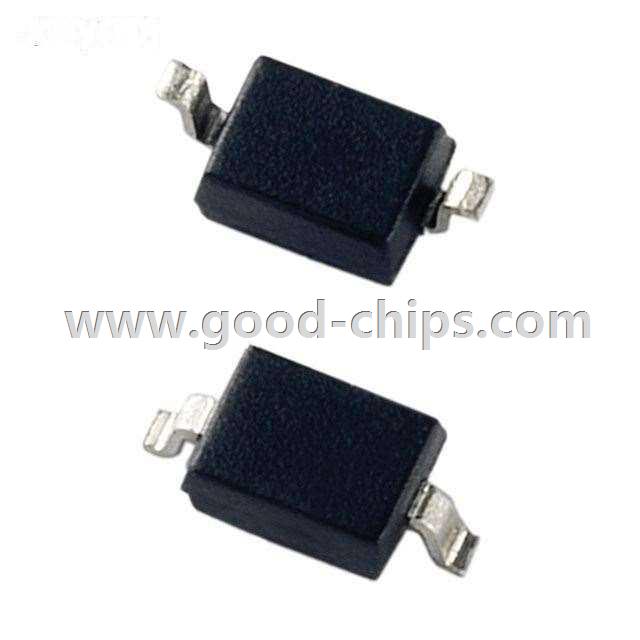

| Manufacturer Part Number: | SP4023-01FTG |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 15VWM 40VC SOD323 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SP4023-01FTG Datasheet |
| Internal Part Number | 898-SP4023-01FTG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TVS Diode Arrays ESD and Lightning SP4022 (23, 24) | |
| Online Catalog | Automotive, AEC-Q101, SP4023, SPA® Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Littelfuse Inc. | |
| Series | Automotive, AEC-Q101, SP4023, SPA® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 15V (Max) | |
| Voltage - Breakdown (Min) | 16V | |
| Voltage - Clamping (Max) @ Ipp | 40V | |
| Current - Peak Pulse (10/1000µs) | 12A (8/20µs) | |
| Power - Peak Pulse | 450W | |
| Power Line Protection | No | |
| Applications | Automotive | |
| Capacitance @ Frequency | 1.3pF @ 1MHz | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-76, SOD-323 | |
| Supplier Device Package | SOD-323 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SP4023-01FTG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SP4023-01FTG is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SP4023-01FTG is new and unused, you can buy SP4023-01FTG Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP4023-01FTG.
