Manufacturer Part Number: | SP3012-03UTG |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 5VWM 7VC 6UDFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SP3012-03UTG Datasheet |
Internal Part Number | 898-SP3012-03UTG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | TVS Diode Arrays - ESD Suppressors for I/O Interfaces | |
Featured Product | SP3012 TVS Diode Arrays Compact Form-Factors | |
Online Catalog | SPA™ SP3012 Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Littelfuse Inc. | |
Series | SP3012, SPA® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Steering (Rail to Rail) | |
Unidirectional Channels | - | |
Bidirectional Channels | 3 | |
Voltage - Reverse Standoff (Typ) | 5V (Max) | |
Voltage - Breakdown (Min) | - | |
Voltage - Clamping (Max) @ Ipp | 7V (Typ) | |
Current - Peak Pulse (10/1000µs) | 2A (8/20µs) | |
Power - Peak Pulse | - | |
Power Line Protection | Yes | |
Applications | General Purpose | |
Capacitance @ Frequency | 0.5pF @ 1MHz | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |

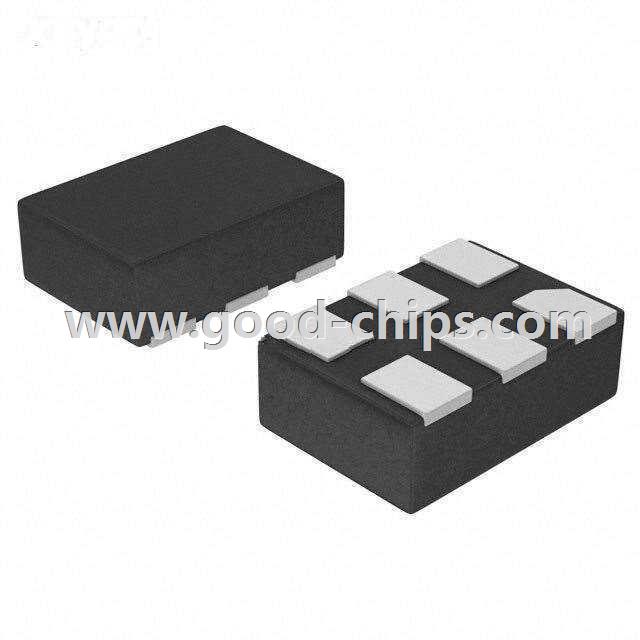

Package / Case | 6-UFDFN | |
Supplier Device Package | 6-UDFN (1.6x1.6) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SP3012-03UTG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SP3012-03UTG is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SP3012-03UTG is new and unused, you can buy SP3012-03UTG Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP3012-03UTG.
