| Manufacturer Part Number: | SP3003-02XTG |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 26089 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 6VWM 15VC SOT553 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SP3003-02XTG Datasheet |
| Internal Part Number | 898-SP3003-02XTG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | TVS Diode Arrays - ESD Suppressors for I/O Interfaces | |
| Featured Product | SP3000 Series Silicon Protection Arrays | |
| Online Catalog | SPA™ SP3003 Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Littelfuse Inc. | |
| Series | SP3003, SPA® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 2 | |
| Voltage - Reverse Standoff (Typ) | 6V (Max) | |
| Voltage - Breakdown (Min) | - | |
| Voltage - Clamping (Max) @ Ipp | 15V | |
| Current - Peak Pulse (10/1000µs) | 2.5A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |

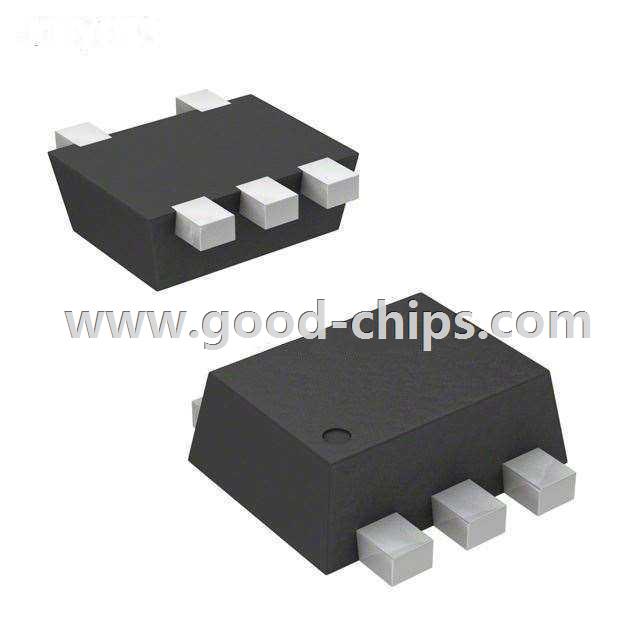

| Package / Case | SOT-553 | |
| Supplier Device Package | SOT-553 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SP3003-02XTG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SP3003-02XTG is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SP3003-02XTG is new and unused, you can buy SP3003-02XTG Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP3003-02XTG.
