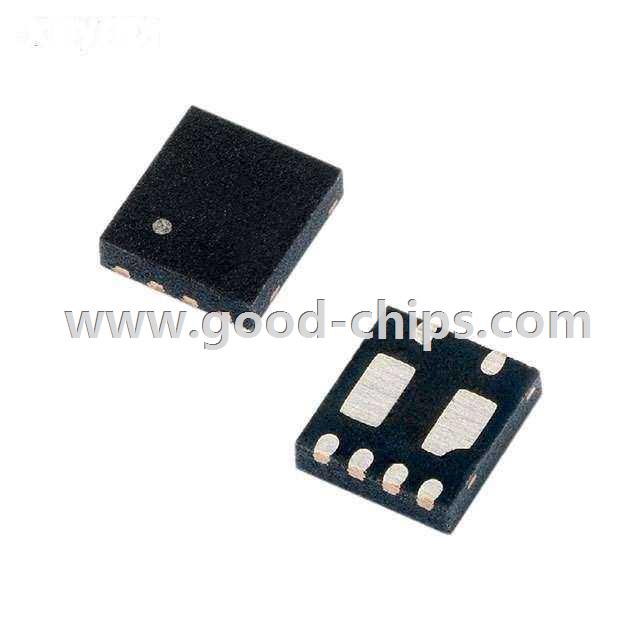

| Manufacturer Part Number: | SP1255PUTG |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 4VWM 8.5VC DFN6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SP1255PUTG Datasheet |
| Internal Part Number | 898-SP1255PUTG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TVS Diode Array 12 kV μUSB SP1255 Series | |
| Online Catalog | SPA® SP1255P Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Littelfuse Inc. | |
| Series | SP1255P, SPA® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Steering (Rail to Rail) | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 3 | |
| Voltage - Reverse Standoff (Typ) | 4V (Max) | |
| Voltage - Breakdown (Min) | 4.5V | |
| Voltage - Clamping (Max) @ Ipp | 8.5V | |
| Current - Peak Pulse (10/1000µs) | 2A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | Yes | |
| Applications | USB OTG | |
| Capacitance @ Frequency | 0.5pF @ 1MHz | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-UFDFN Exposed Pad | |
| Supplier Device Package | 6-UDFN (1.8x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SP1255PUTG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SP1255PUTG is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SP1255PUTG is new and unused, you can buy SP1255PUTG Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP1255PUTG.
