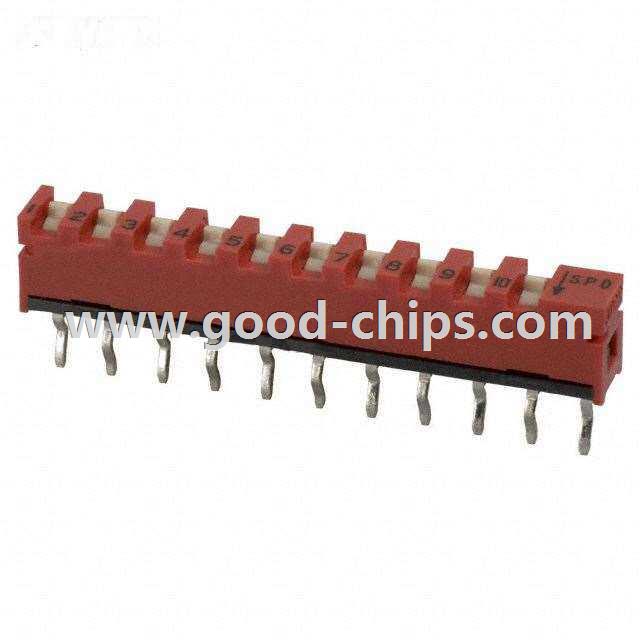

SP10B

SP10B
Manufacturer Part Number:SP10B
Manufacturer:
Product Category:DIP Switches
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Dip Switch SPST 10 Position Through Hole Slide (Standard) Actuator 10mA 20VDC
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: SP10B Datasheet
SP10B´s Parameters
Internal Part Number898-SP10B
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
PCN Obsolescence/ EOLSP Series 24/Aug/2010
CategorySwitches
FamilyDIP Switches
ManufacturerC&K Components
SeriesSP
PackagingTube
Part StatusObsolete
CircuitSPST
Number of Positions10
Current Rating10mA
Voltage Rating20VDC
Actuator TypeSlide (Standard)
Actuator LevelFlush, Recessed
Contact MaterialBeryllium Copper
Contact FinishGold
Height Above Board0.196" (4.99mm)
Mounting TypeThrough Hole
Termination StylePC Pin
Pitch0.100" (2.54mm), Full
WashableYes
Features-
Body MaterialPolyphenylene Sulfide (PPS)
Length1.098" (27.89mm)
Operating Temperature-20°C ~ 85°C
Mechanical Life1,000 Cycles
Electrical Life1,000 Cycles
Standard Package 15
Weight0.001 KG
ApplicationEmail for details
Replacement PartSP10B
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

SP10B is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of SP10B is new and unused, you can buy SP10B C&K Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for SP10B.
