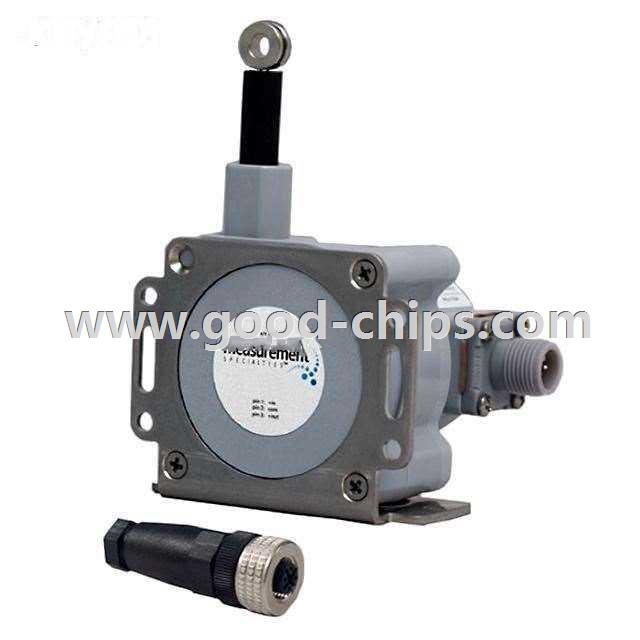

Manufacturer Part Number: | SP1-12 |
---|---|
Manufacturer: | TE Connectivity Potter & Brumfield Relays |
Product Category: | Position Sensors - Angle, Linear Position Measuring |
Available Quantity: | 9038 Pieces |
Unit Price: | Quote by Email |
Description: | Resistive Sensor Linear Position String Potentiometer Solder Lug |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SP1-12 Datasheet |
Internal Part Number | 898-SP1-12 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Multiple Devices Location 30/Sep/2015 | |
Online Catalog | SP1 Series | |
Category | Sensors, Transducers | |
Family | Position Sensors - Angle, Linear Position Measuring | |
Manufacturer | TE Connectivity Measurement Specialties | |
Series | - | |
Part Status | Active | |
For Measuring | Linear Position | |
Technology | Resistive | |
Rotation Angle - Electrical, Mechanical | - | |
Linear Range | 0 ~ 317mm (0 ~ 12.5") | |
Output | Analog Voltage | |
Output Signal | - | |
Actuator Type | String Potentiometer | |
Linearity | - | |
Resistance (Ohms) | 10k | |
Resistance Tolerance | ±10% | |
Voltage - Supply | 30V | |
Mounting Type | Panel Mount | |
Termination Style | Solder Lug | |
Operating Temperature | -18°C ~ 70°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SP1-12 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SP1-12 is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of SP1-12 is new and unused, you can buy SP1-12 TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP1-12.
