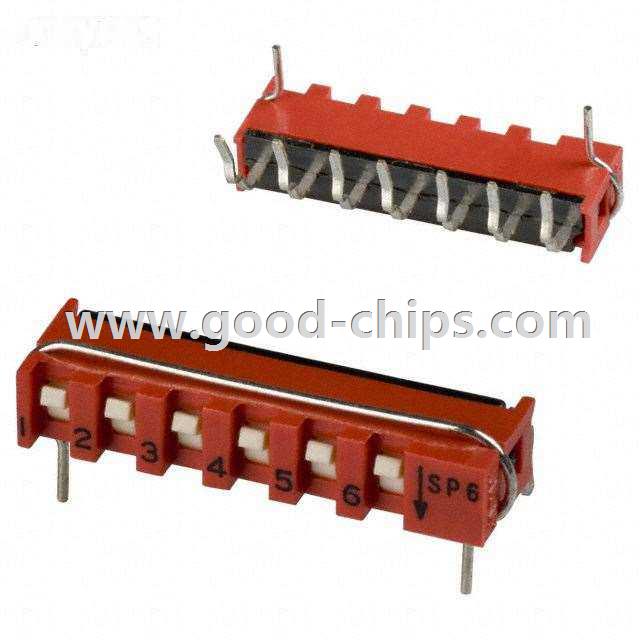

Manufacturer Part Number: | SP06A |
---|---|
Manufacturer: | C&K Components |
Product Category: | DIP Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Dip Switch SPST 6 Position Through Hole, Right Angle Slide (Standard) Actuator 10mA 20VDC |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SP06A Datasheet |
Internal Part Number | 898-SP06A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | SP Series 24/Aug/2010 | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | C&K Components | |
Series | SP | |
Packaging | Tube | |
Part Status | Obsolete | |
Circuit | SPST | |
Number of Positions | 6 | |
Current Rating | 10mA | |
Voltage Rating | 20VDC | |
Actuator Type | Slide (Standard) | |
Actuator Level | Flush, Recessed | |
Contact Material | Beryllium Copper | |
Contact Finish | Gold | |
Height Above Board | 0.169" (4.30mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination Style | PC Pin | |
Pitch | 0.100" (2.54mm), Full | |
Washable | Yes | |
Features | - | |
Body Material | Polybutylene Terephthalate (PBT) | |
Length | 0.698" (17.74mm) | |
Operating Temperature | -20°C ~ 85°C | |
Mechanical Life | 1,000 Cycles | |
Electrical Life | 1,000 Cycles | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SP06A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SP06A is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of SP06A is new and unused, you can buy SP06A C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP06A.
