| Manufacturer Part Number: | SP-3501 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Barrel - Audio Connectors |
| Available Quantity: | 23338 Pieces |
| Unit Price: | Quote by Email |

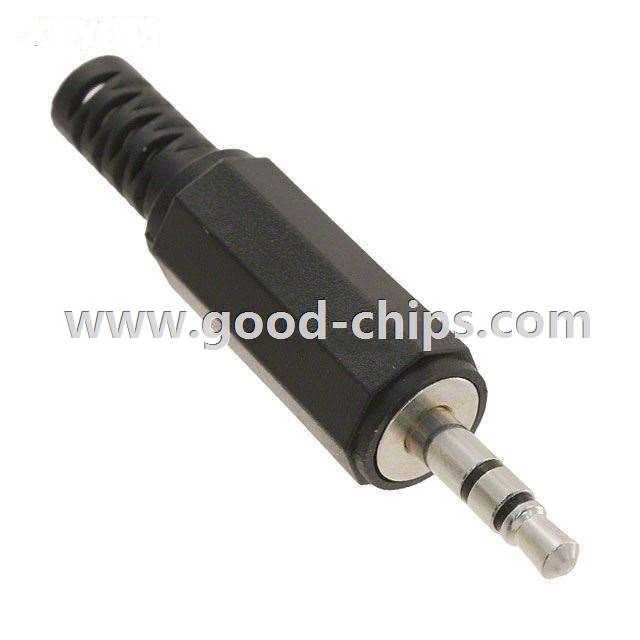

| Description: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Plug Stereo Connector Solder |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SP-3501 Datasheet |
| Internal Part Number | 898-SP-3501 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | SP-3501 Cert of Compliance | |
| 3D Model | SP-3501 | |
| Online Catalog | CUI | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Audio Connectors | |
| Manufacturer | CUI Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Phone Plug | |
| Gender | Male | |
| Signal Lines | Stereo | |
| Industry Recognized Mating Diameter | 3.50mm (0.141", 1/8", Mini Plug) - Headphone | |
| Actual Diameter | 0.138" (3.50mm) | |
| Number of Positions/Contacts | 3 Conductors, 3 Contacts | |
| Internal Switch(s) | Does Not Contain Switch | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | Strain Relief | |
| Insulation Color | - | |
| Voltage - Rated | - | |
| Current Rating | - | |
| Mating Length/Depth | 0.551" (14.00mm) | |
| Contact Material - Plating | Nickel | |
| Body Material | - | |
| Body Color | Black | |
| Includes | 2 pcs - 1 Connector, 1 Handle | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SP-3501 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SP-3501 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SP-3501 is new and unused, you can buy SP-3501 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SP-3501.
