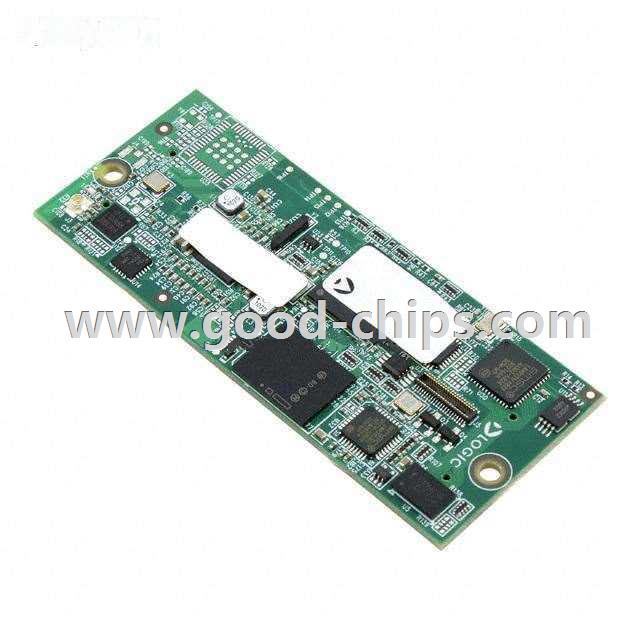

| Manufacturer Part Number: | SOMOMAP3530-11-1782JFIR |
|---|---|
| Manufacturer: | Logic |
| Product Category: | Embedded - Microcontroller or Microprocessor Modules |
| Available Quantity: | 9108 Pieces |
| Unit Price: | Quote by Email |
| Description: | OMAP35x Embedded Module ARM® Cortex®-A8, OMAP3530 TMS320C64x (DSP) 600MHz 256MB 512MB (NAND), 8MB (NOR) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SOMOMAP3530-11-1782JFIR Datasheet |
| Internal Part Number | 898-SOMOMAP3530-11-1782JFIR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Software Upgrade 12/Nov/2014 Design Updates 07/Aug/2015 | |
| Online Catalog | OMAP35x Series | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontroller or Microprocessor Modules | |
| Manufacturer | Logic | |
| Series | OMAP35x | |
| Part Status | Active | |
| Module/Board Type | MPU, DSP Core | |
| Core Processor | ARM® Cortex®-A8, OMAP3530 | |
| Co-Processor | TMS320C64x (DSP) | |
| Speed | 600MHz | |
| Flash Size | 512MB (NAND), 8MB (NOR) | |
| RAM Size | 256MB | |
| Connector Type | Board-to-Board (BTB) Socket - 240 | |
| Size / Dimension | 1.23" x 3.01" (31.2mm x 76.5mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SOMOMAP3530-11-1782JFIR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SOMOMAP3530-11-1782JFIR is in stock for immediate shipping now. We are the distributor of Logic all series components. The condition of SOMOMAP3530-11-1782JFIR is new and unused, you can buy SOMOMAP3530-11-1782JFIR Logic with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SOMOMAP3530-11-1782JFIR.
