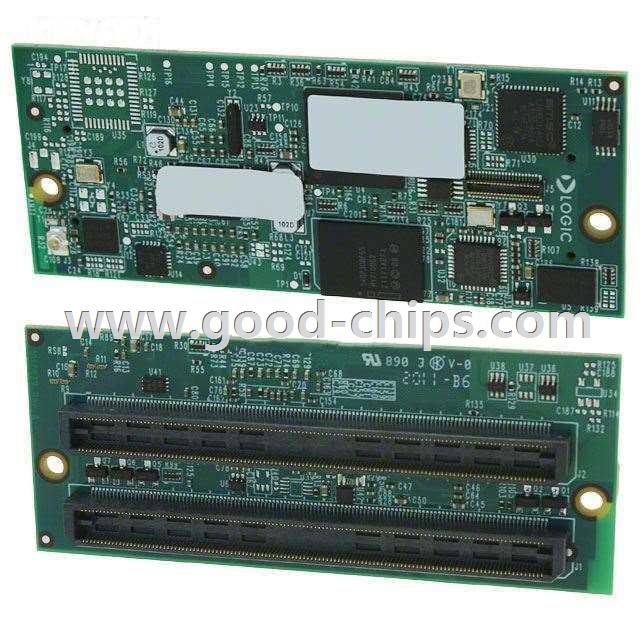

Manufacturer Part Number: | SOMDM3730-10-1782JFIR |
---|---|
Manufacturer: | Logic |
Product Category: | Embedded - Microcontroller or Microprocessor Modules |
Available Quantity: | 9223 Pieces |
Unit Price: | Quote by Email |
Description: | DM37x Embedded Module ARM® Cortex®-A8, DM3730 TMS320C64x (DSP) 800MHz 256MB 512MB (NAND), 8MB (NOR) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SOMDM3730-10-1782JFIR Datasheet |
Internal Part Number | 898-SOMDM3730-10-1782JFIR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Software Upgrade 13/Nov/2014 | |
Online Catalog | AM37x/DM37x | |
Category | Integrated Circuits (ICs) | |
Family | Embedded - Microcontroller or Microprocessor Modules | |
Manufacturer | Logic | |
Series | DM37x | |
Part Status | Active | |
Module/Board Type | MPU, DSP Core | |
Core Processor | ARM® Cortex®-A8, DM3730 | |
Co-Processor | TMS320C64x (DSP) | |
Speed | 800MHz | |
Flash Size | 512MB (NAND), 8MB (NOR) | |
RAM Size | 256MB | |
Connector Type | Board-to-Board (BTB) Socket - 480 | |
Size / Dimension | 1.23" x 3.01" (31.2mm x 76.5mm) | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SOMDM3730-10-1782JFIR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SOMDM3730-10-1782JFIR is in stock for immediate shipping now. We are the distributor of Logic all series components. The condition of SOMDM3730-10-1782JFIR is new and unused, you can buy SOMDM3730-10-1782JFIR Logic with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SOMDM3730-10-1782JFIR.
