Manufacturer Part Number: | SN74LVC1T45DRLR |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Logic - Translators, Level Shifters |
Available Quantity: | 33010 Pieces |
Unit Price: | Quote by Email |
Description: | Voltage Level Translator Bidirectional 1 Circuit 1 Channel 420Mbps 6-SOT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SN74LVC1T45DRLR Datasheet |
Internal Part Number | 898-SN74LVC1T45DRLR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Voltage Level Translation | |
Manufacturer Product Page | SN74LVC1T45DRLR Specifications | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | 74LVC | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Translators, Level Shifters | |
Manufacturer | Texas Instruments | |
Series | 74LVC | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Translator Type | Voltage Level | |
Channel Type | Bidirectional | |
Number of Circuits | 1 | |
Channels per Circuit | 1 | |
Voltage - VCCA | 1.65 V ~ 5.5 V | |
Voltage - VCCB | 1.65 V ~ 5.5 V | |
Input Signal | - | |
Output Signal | - | |
Output Type | Tri-State, Non-Inverted | |
Data Rate | 420Mbps | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Features | - | |
Mounting Type | Surface Mount | |

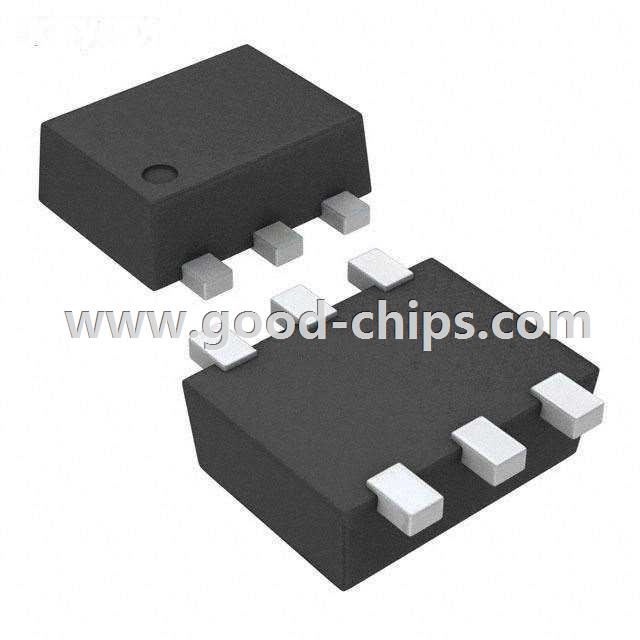

Package / Case | SOT-563, SOT-666 | |
Supplier Device Package | 6-SOT | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SN74LVC1T45DRLR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SN74LVC1T45DRLR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of SN74LVC1T45DRLR is new and unused, you can buy SN74LVC1T45DRLR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SN74LVC1T45DRLR.
