Manufacturer Part Number: | SN74ABT7820-15PH |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Logic - FIFOs Memory |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC 512X18X2 BI-DIR MEM 80-QFP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SN74ABT7820-15PH Datasheet |
Internal Part Number | 898-SN74ABT7820-15PH | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Logic - FIFOs Memory | |
Manufacturer | Texas Instruments | |
Series | 74ABT | |
Packaging | Tray | |
Part Status | Active | |
Memory Size | 18K (512 x 18 x 2) | |
Function | Asynchronous | |
Data Rate | 67MHz | |
Access Time | 12ns | |
Voltage - Supply | 4.5 V ~ 5.5 V | |
Current - Supply (Max) | 95mA | |
Bus Directional | Bi-Directional | |
Expansion Type | - | |
Programmable Flags Support | Yes | |
Retransmit Capability | No | |
FWFT Support | No | |
Operating Temperature | 0°C ~ 70°C | |
Mounting Type | Surface Mount | |

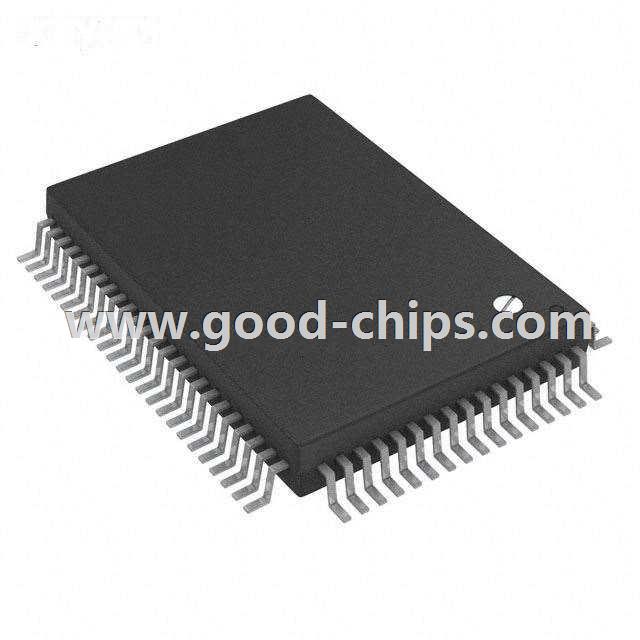

Package / Case | 80-BQFP | |
Supplier Device Package | 80-QFP (14x20) | |
Standard Package | 66 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SN74ABT7820-15PH | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SN74ABT7820-15PH is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of SN74ABT7820-15PH is new and unused, you can buy SN74ABT7820-15PH Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SN74ABT7820-15PH.
