| Manufacturer Part Number: | SN74ABT534APWE4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Logic - Flip Flops |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC D-TYPE POS TRG SNGL 20TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SN74ABT534APWE4 Datasheet |
| Internal Part Number | 898-SN74ABT534APWE4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Flip Flops | |
| Manufacturer | Texas Instruments | |
| Series | 74ABT | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Function | Standard | |
| Type | D-Type | |
| Output Type | Tri-State, Inverted | |
| Number of Elements | 1 | |
| Number of Bits per Element | 8 | |
| Frequency - Clock | 175MHz | |
| Max Propagation Delay @ V, Max CL | 6.7ns @ 5V, 50pF | |
| Trigger Type | Positive Edge | |
| Current - Output High, Low | 32mA, 64mA | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Current - Quiescent | 250µA | |
| Input Capacitance | 3.5pF | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

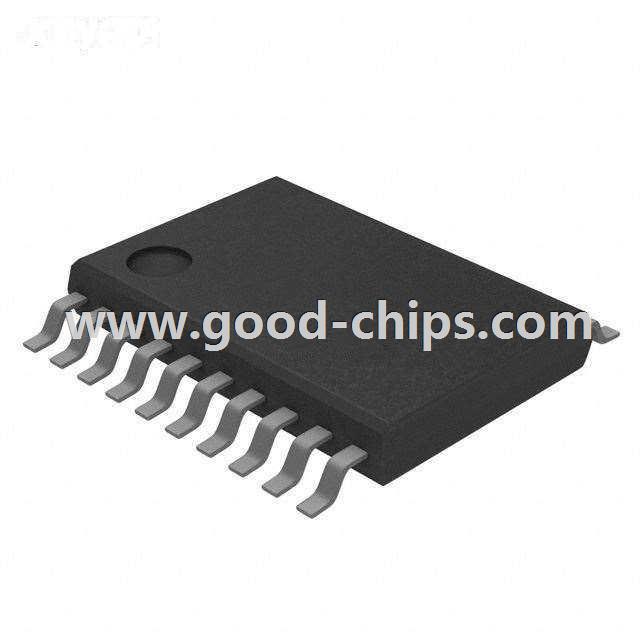

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) | |
| Standard Package | 980 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SN74ABT534APWE4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SN74ABT534APWE4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of SN74ABT534APWE4 is new and unused, you can buy SN74ABT534APWE4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SN74ABT534APWE4.
