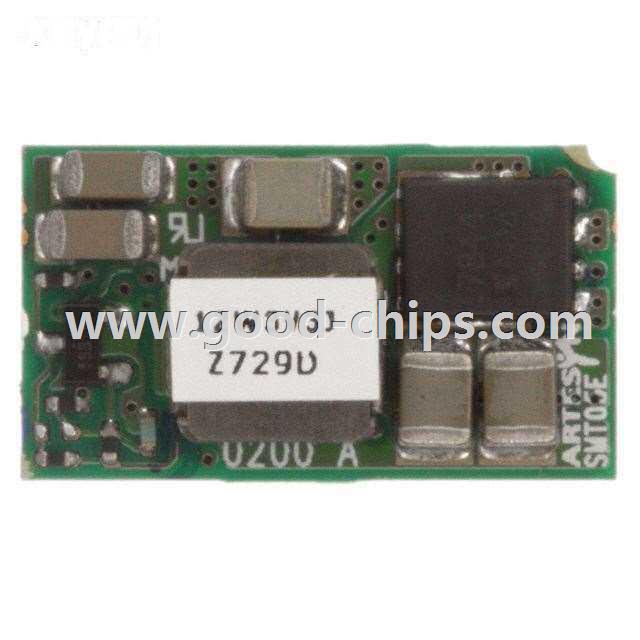

| Manufacturer Part Number: | SMT05E-12W3V3J |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | DC DC Converters |
| Available Quantity: | 9883 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV DC/DC 12VIN 3.3VOUT 5A SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMT05E-12W3V3J Datasheet |
| Internal Part Number | 898-SMT05E-12W3V3J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | Declaration of Conformity | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | SMT05E Series | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | SMT05E | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 10V | |
| Voltage - Input (Max) | 14V | |
| Voltage - Output 1 | 0.8 ~ 3.63 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 5A | |
| Power (Watts) - Manufacture Series | 16W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OTP, SCP | |
| Mounting Type | Surface Mount | |
| Package / Case | 5-SMD Module | |
| Size / Dimension | 0.80" L x 0.45" W x 0.24" H (20.3mm x 11.4mm x 6.1mm) | |
| Operating Temperature | -40°C ~ 100°C | |
| Efficiency | 91% | |
| Power (Watts) - Max | 16.5W | |
| Standard Package | 96 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMT05E-12W3V3J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMT05E-12W3V3J is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of SMT05E-12W3V3J is new and unused, you can buy SMT05E-12W3V3J Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMT05E-12W3V3J.
