Manufacturer Part Number: | SMM4F28A-TR |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | TVS - Diodes |
Available Quantity: | 12345 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 28VWM 59VC DO216AA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SMM4F28A-TR Datasheet |
Internal Part Number | 898-SMM4F28A-TR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | SMM4F View All Specifications SMM4F View All Specifications | |
Online Catalog | Transil™ SMA4F, SMAJ, SMM4F, SMX1J Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | STMicroelectronics | |
Series | SMM4F, TRANSIL™ | |
Packaging | Digi-Reel® | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 28V | |
Voltage - Breakdown (Min) | 31.4V | |
Voltage - Clamping (Max) @ Ipp | 59V | |
Current - Peak Pulse (10/1000µs) | 39A (8/20µs) | |
Power - Peak Pulse | 400W | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

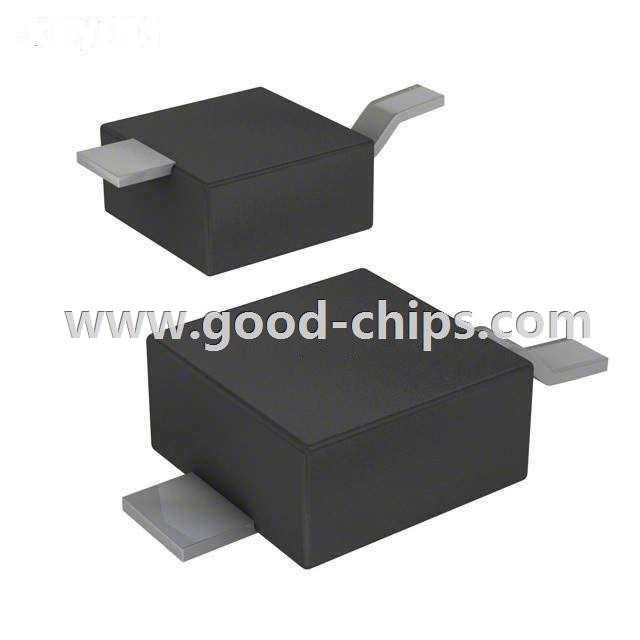

Package / Case | DO-216AA | |
Supplier Device Package | DO-216AA | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SMM4F28A-TR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SMM4F28A-TR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of SMM4F28A-TR is new and unused, you can buy SMM4F28A-TR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMM4F28A-TR.
