| Manufacturer Part Number: | SMM4F12AVCL |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 12VWM 22.9VC DO216AA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMM4F12AVCL Datasheet |
| Internal Part Number | 898-SMM4F12AVCL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SMM4F12AVCL View All Specifications SMM4F12AVCL View All Specifications | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | STMicroelectronics | |
| Series | SMM4F, TRANSIL™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 12V | |
| Voltage - Breakdown (Min) | 13V | |
| Voltage - Clamping (Max) @ Ipp | 22.9V | |
| Current - Peak Pulse (10/1000µs) | 100A (8/20µs) | |
| Power - Peak Pulse | 400W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |

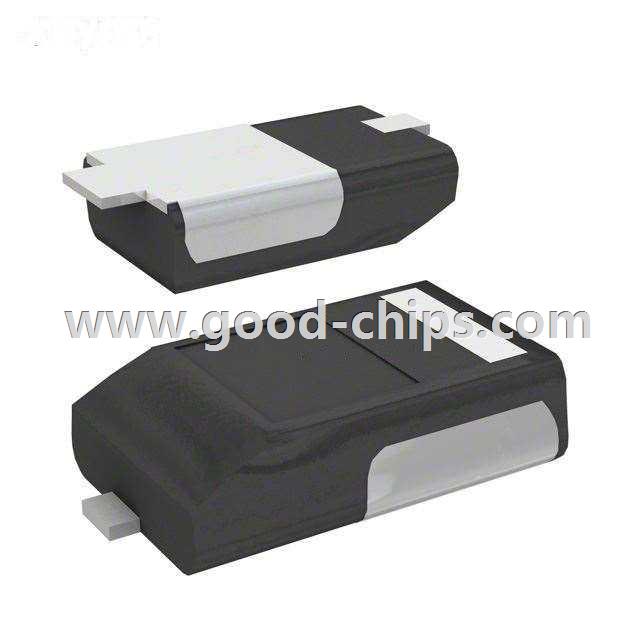

| Package / Case | DO-222AA | |
| Supplier Device Package | STmite Flat | |
| Standard Package | 12,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMM4F12AVCL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMM4F12AVCL is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of SMM4F12AVCL is new and unused, you can buy SMM4F12AVCL STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMM4F12AVCL.
