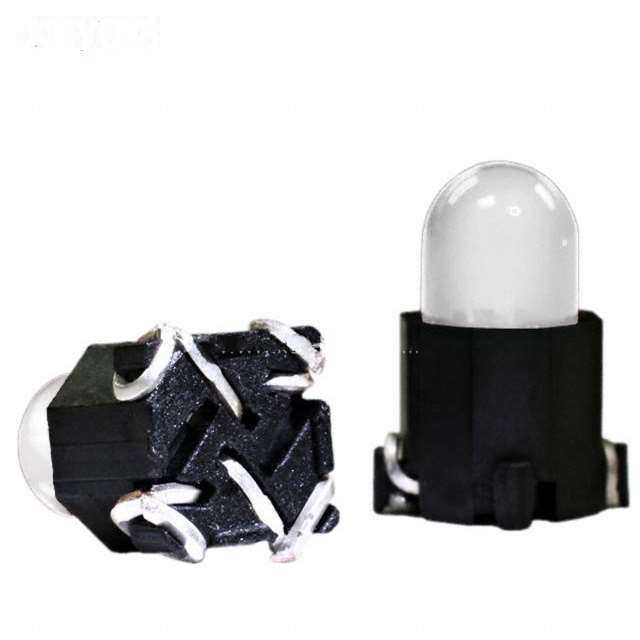

| Manufacturer Part Number: | SML-H1505UPGC-TR |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Green LED Indication - Discrete 3.3V 2-SMD; 1505 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SML-H1505UPGC-TR Datasheet |
| Internal Part Number | 898-SML-H1505UPGC-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LEDs OctoLEDs™ Transitioning to Surface-Mount Benefits of Custom LED and LCD Technology | |
| RoHS Information | RoHS Cert of Compliance | |
| Featured Product | Surface-Mount OctoLEDs™ | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Green | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 7000mcd | |
| Lens Style/Size | Round with Domed Top, 4.90mm | |
| Voltage - Forward (Vf) (Typ) | 3.3V | |
| Current - Test | 20mA | |
| Viewing Angle | 45° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | - | |
| Wavelength - Peak | 520nm | |
| Features | - | |
| Package / Case | 2-SMD; 1505 | |
| Supplier Device Package | Surface Mounted Dome LED | |
| Size / Dimension | 6.51mm L x 6.51mm W | |
| Height (Max) | 11.00mm | |
| Standard Package | 350 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SML-H1505UPGC-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SML-H1505UPGC-TR is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of SML-H1505UPGC-TR is new and unused, you can buy SML-H1505UPGC-TR Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SML-H1505UPGC-TR.
