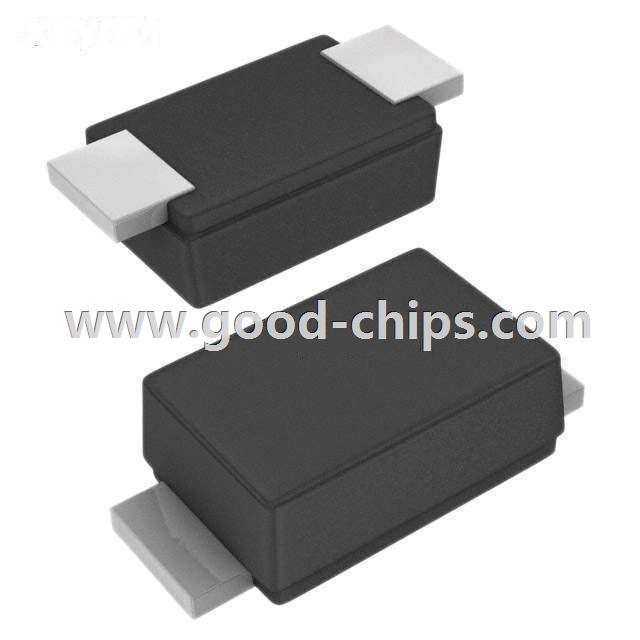

Manufacturer Part Number: | SMF7.0A |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 7VWM 12VC SOD123 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SMF7.0A Datasheet |
Internal Part Number | 898-SMF7.0A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Transient Voltage Suppression (TVS) Diodes TVS Diode Arrays - ESD Suppressors for I/O Interfaces | |
Featured Product | SMF Series TVS Diodes | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | SMF Series | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Littelfuse Inc. | |
Series | SMF | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 7V | |
Voltage - Breakdown (Min) | 7.78V | |
Voltage - Clamping (Max) @ Ipp | 12V | |
Current - Peak Pulse (10/1000µs) | 16.7A | |
Power - Peak Pulse | 200W | |
Power Line Protection | No | |
Applications | General Purpose | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |
Package / Case | SOD-123F | |
Supplier Device Package | SOD-123F | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SMF7.0A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SMF7.0A is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SMF7.0A is new and unused, you can buy SMF7.0A Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMF7.0A.
