| Manufacturer Part Number: | SMBW001D00 |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Coaxial Connectors (RF) |
| Available Quantity: | 9209 Pieces |
| Unit Price: | Quote by Email |

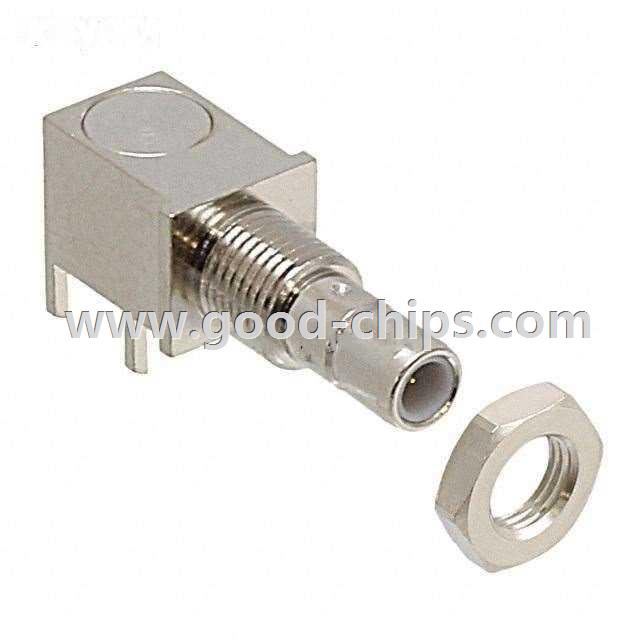

| Description: | SMB Connector Receptacle, Male Pin 50 Ohm Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMBW001D00 Datasheet |
| Internal Part Number | 898-SMBW001D00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | SMB | |
| Category | Connectors, Interconnects | |
| Family | Coaxial Connectors (RF) | |
| Manufacturer | JAE Electronics | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | SMB | |
| Connector Type | Receptacle, Male Pin | |
| Contact Termination | - | |
| Shield Termination | - | |
| Impedance | 50 Ohm | |
| Mounting Type | Through Hole | |
| Cable Group | - | |
| Fastening Type | Snap-On | |
| Frequency - Max | 3GHz | |
| Features | - | |
| Housing Color | Silver | |
| Ingress Protection | - | |
| Body Material | Copper Alloy | |
| Body Finish | Nickel | |
| Center Contact Material | Copper Alloy | |
| Center Contact Plating | Gold | |
| Dielectric Material | - | |
| Voltage Rating | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMBW001D00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMBW001D00 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of SMBW001D00 is new and unused, you can buy SMBW001D00 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMBW001D00.
