 2 Leads.jpg)
| Manufacturer Part Number: | SMBJ100CA-TR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | TVS - Diodes |
| Available Quantity: | 13221 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 100VWM 212VC SMB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMBJ100CA-TR Datasheet |
| Internal Part Number | 898-SMBJ100CA-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SMBJ View All Specifications | |
| Mfg Application Notes | AN4160 Appl Note | |
| Online Catalog | Transil™ SMA6F, SMA6J, SMBJ Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | STMicroelectronics | |
| Series | SMBJ, TRANSIL™ | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 100V | |
| Voltage - Breakdown (Min) | 111V | |
| Voltage - Clamping (Max) @ Ipp | 212V | |
| Current - Peak Pulse (10/1000µs) | 19A (8/20µs) | |
| Power - Peak Pulse | 600W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

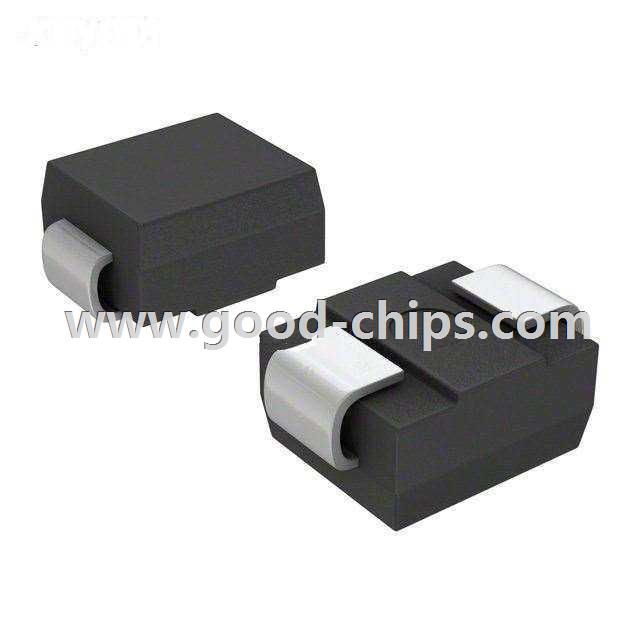

| Package / Case | DO-214AA, SMB | |
| Supplier Device Package | SMB (DO-214AA) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMBJ100CA-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMBJ100CA-TR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of SMBJ100CA-TR is new and unused, you can buy SMBJ100CA-TR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMBJ100CA-TR.
