| Manufacturer Part Number: | SMAZ27-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 27V 1W ±5% Surface Mount SMA |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMAZ27-13 Datasheet |
| Internal Part Number | 898-SMAZ27-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Discontinued | |
| Voltage - Zener (Nom) (Vz) | 27V | |
| Tolerance | ±5% | |
| Power - Max | 1W | |
| Impedance (Max) (Zzt) | 15 Ohm | |
| Current - Reverse Leakage @ Vr | 500nA @ 20.5V | |
| Voltage - Forward (Vf) (Max) @ If | 1.2V @ 200mA | |
| Operating Temperature | -65°C ~ 150°C | |
| Mounting Type | Surface Mount | |

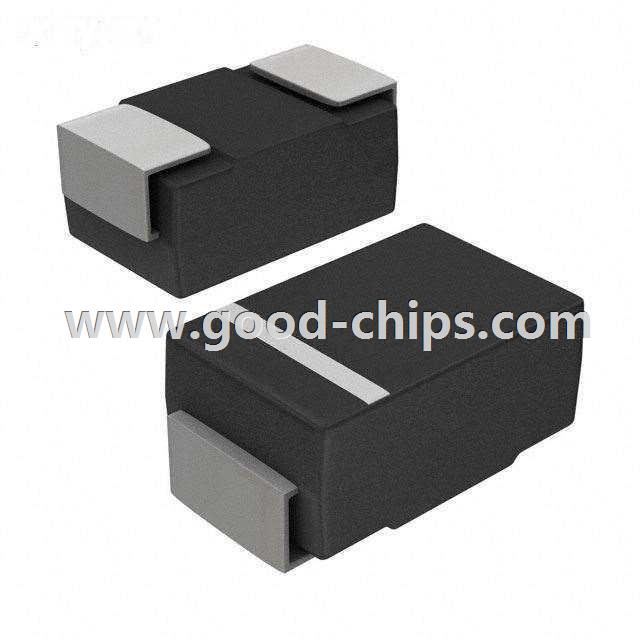

| Package / Case | DO-214AC, SMA | |
| Supplier Device Package | SMA | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMAZ27-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMAZ27-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of SMAZ27-13 is new and unused, you can buy SMAZ27-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMAZ27-13.
