| Manufacturer Part Number: | SMA6L9.0A |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 9VWM 15.4VC SMA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMA6L9.0A Datasheet |
| Internal Part Number | 898-SMA6L9.0A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Transient Voltage Suppression (TVS) Diodes TVS Diode Arrays - ESD Suppressors for I/O Interfaces | |
| Featured Product | SMA6L Series SMA TVS Diode | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SMA6L Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | Littelfuse Inc. | |
| Series | SMA6L | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 1 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 9V | |
| Voltage - Breakdown (Min) | 10V | |
| Voltage - Clamping (Max) @ Ipp | 15.4V | |
| Current - Peak Pulse (10/1000µs) | 39A | |
| Power - Peak Pulse | 600W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

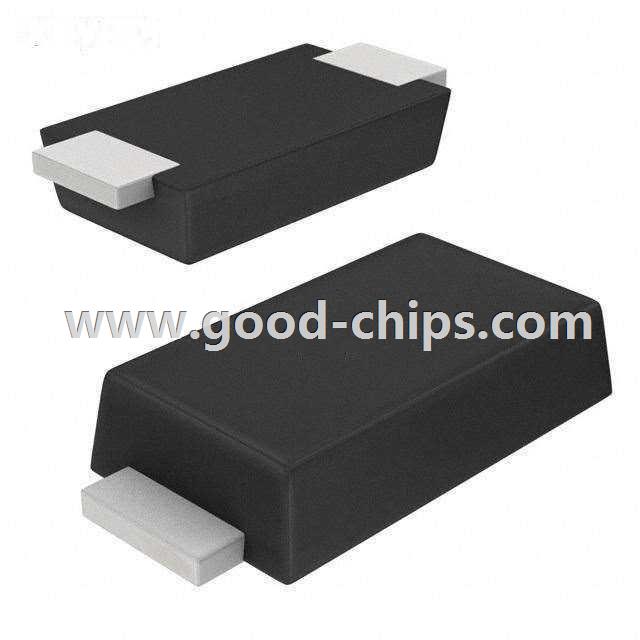

| Package / Case | DO-221AC, SMA Flat Leads | |
| Supplier Device Package | DO-221AC | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMA6L9.0A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMA6L9.0A is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of SMA6L9.0A is new and unused, you can buy SMA6L9.0A Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMA6L9.0A.
