| Manufacturer Part Number: | SMA5101-TL-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | RF Mixers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Mixer IC Ku-Band 6-MCPH |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SMA5101-TL-H Datasheet |
| Internal Part Number | 898-SMA5101-TL-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Design/Specification | Lead Frame Material Update 09/Apr/2014 | |
| Category | RF/IF and RFID | |
| Family | RF Mixers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| RF Type | Ku-Band | |
| Frequency | - | |
| Number of Mixers | 1 | |
| Gain | -0.5dB | |
| Noise Figure | - | |
| Secondary Attributes | - | |
| Current - Supply | - | |
| Voltage - Supply | - | |
| Package / Case | 6-SMD, Flat Leads | |

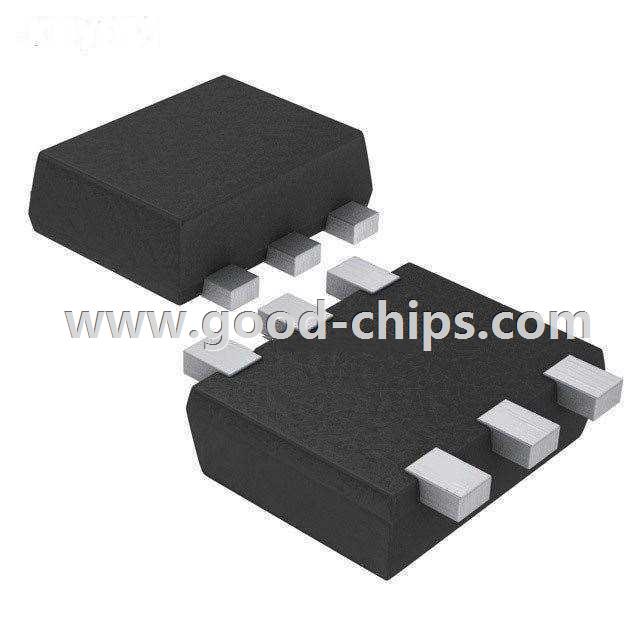

| Supplier Device Package | 6-MCPH | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SMA5101-TL-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SMA5101-TL-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of SMA5101-TL-H is new and unused, you can buy SMA5101-TL-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SMA5101-TL-H.
