Manufacturer Part Number: | SM6S26ATHE3/I |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | TVS - Diodes |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | TVS DIODE 26VWM 42.1VC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SM6S26ATHE3/I Datasheet |
Internal Part Number | 898-SM6S26ATHE3/I | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Circuit Protection | |
Family | TVS - Diodes | |
Manufacturer | Vishay Semiconductor Diodes Division | |
Series | Automotive, AEC-Q101, PAR® | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Zener | |
Unidirectional Channels | 1 | |
Bidirectional Channels | - | |
Voltage - Reverse Standoff (Typ) | 26V | |
Voltage - Breakdown (Min) | 28.9V | |
Voltage - Clamping (Max) @ Ipp | 42.1V | |
Current - Peak Pulse (10/1000µs) | 109A | |
Power - Peak Pulse | 4600W (4.6kW) | |
Power Line Protection | No | |
Applications | Automotive | |
Capacitance @ Frequency | - | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

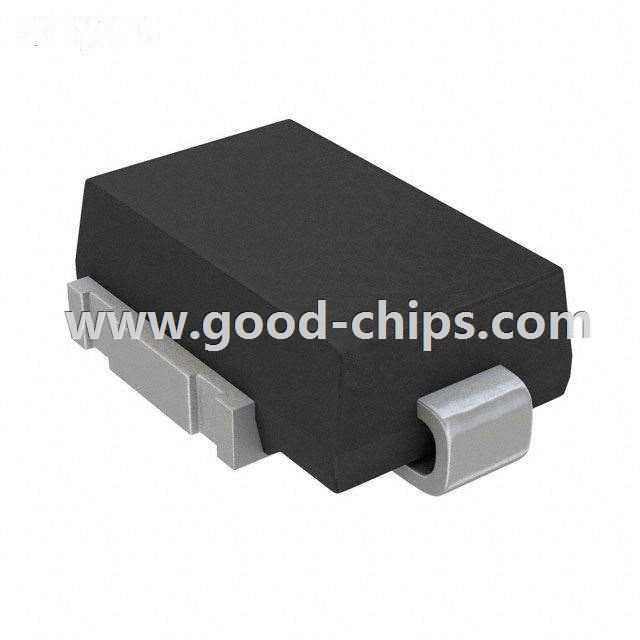

Package / Case | DO-218AC | |
Supplier Device Package | DO-218AC | |
Standard Package | 750 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SM6S26ATHE3/I | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SM6S26ATHE3/I is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of SM6S26ATHE3/I is new and unused, you can buy SM6S26ATHE3/I Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SM6S26ATHE3/I.
