| Manufacturer Part Number: | SM4T56CAY |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | TVS - Diodes |
| Available Quantity: | 13945 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 48VWM 100VC SMA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SM4T56CAY Datasheet |
| Internal Part Number | 898-SM4T56CAY | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | SM4TY View All Specifications | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | STMicroelectronics | |
| Series | Automotive, AEC-Q101, SM4TY, TRANSIL™ | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | - | |
| Bidirectional Channels | 1 | |
| Voltage - Reverse Standoff (Typ) | 48V | |
| Voltage - Breakdown (Min) | 53.3V | |
| Voltage - Clamping (Max) @ Ipp | 100V | |
| Current - Peak Pulse (10/1000µs) | 23A (8/20µs) | |
| Power - Peak Pulse | 400W | |
| Power Line Protection | No | |
| Applications | Automotive | |
| Capacitance @ Frequency | - | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

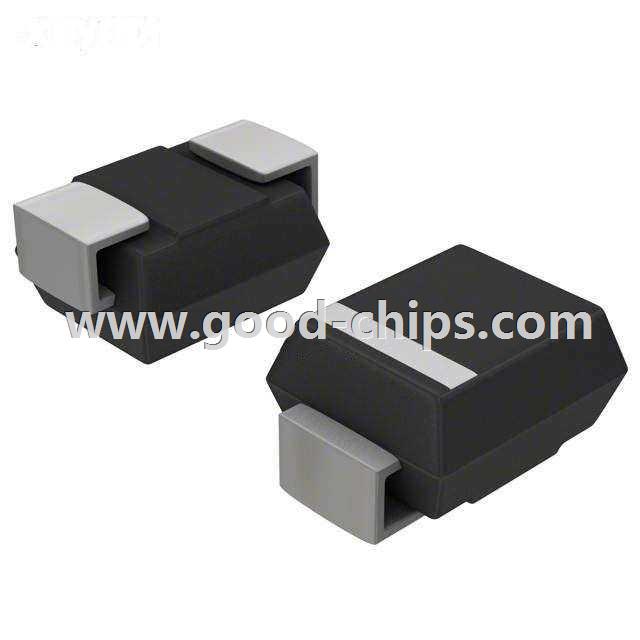

| Package / Case | DO-214AC, SMA | |
| Supplier Device Package | SMA (DO-214AC) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SM4T56CAY | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SM4T56CAY is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of SM4T56CAY is new and unused, you can buy SM4T56CAY STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SM4T56CAY.
