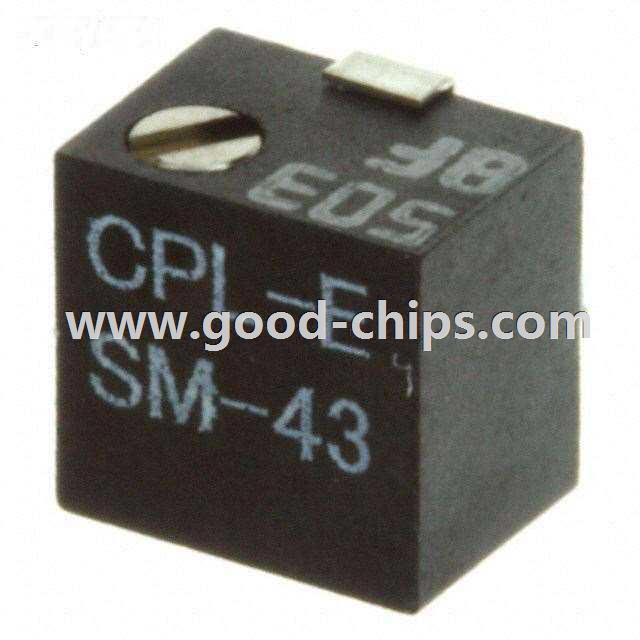

| Manufacturer Part Number: | SM-43TA504 |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Trimmer Potentiometers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 500k Ohm 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 5 Turn Side Adjustment |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SM-43TA504 Datasheet |
| Internal Part Number | 898-SM-43TA504 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models | |
| Featured Product | Copal - SMD Trimmer Potentiometers | |
| 3D Model | SM-43TA504 | |
| Category | Potentiometers, Variable Resistors | |
| Family | Trimmer Potentiometers | |
| Manufacturer | Copal Electronics Inc. | |
| Series | SM43 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Resistance (Ohms) | 500k | |
| Power (Watts) | 0.25W, 1/4W | |
| Tolerance | ±10% | |
| Temperature Coefficient | ±100ppm/°C | |
| Number of Turns | 5 | |
| Adjustment Type | Side Adjustment | |
| Resistive Material | Cermet | |
| Mounting Type | Surface Mount | |
| Termination Style | J Lead | |
| Size / Dimension | Square - 0.189" L x 0.181" W x 0.146" H (4.80mm x 4.60mm x 3.70mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SM-43TA504 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SM-43TA504 is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of SM-43TA504 is new and unused, you can buy SM-43TA504 Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SM-43TA504.
