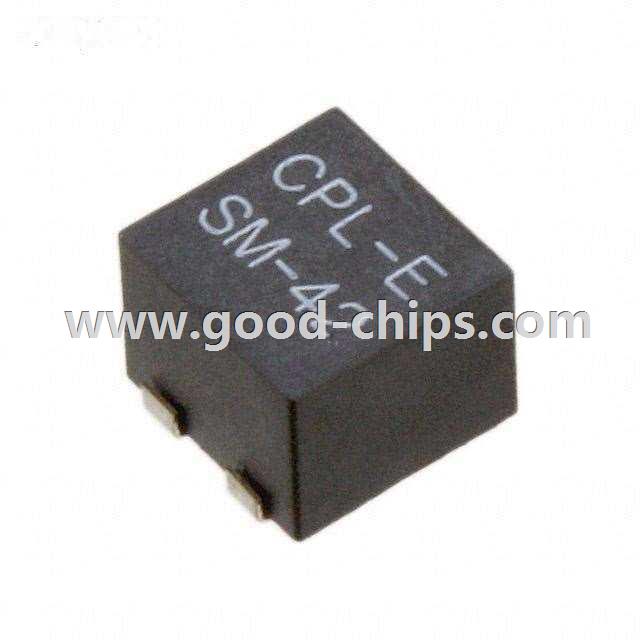

SM-42TA103

SM-42TA103
Manufacturer Part Number:SM-42TA103
Manufacturer:
Product Category:Trimmer Potentiometers
Available Quantity:21510 Pieces
Unit Price:Quote by Email
Description:10k Ohm 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Cermet 11 Turn Side Adjustment
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: SM-42TA103 Datasheet
SM-42TA103´s Parameters
Internal Part Number898-SM-42TA103
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training Modules3D CAD Models
Featured ProductCopal - SMD Trimmer Potentiometers
3D ModelSM-42TA103
Online Catalog SM42
CategoryPotentiometers, Variable Resistors
FamilyTrimmer Potentiometers
ManufacturerCopal Electronics Inc.
SeriesSM42
PackagingTape & Reel (TR)
Part StatusActive
Resistance (Ohms)10k
Power (Watts)0.25W, 1/4W
Tolerance±10%
Temperature Coefficient±100ppm/°C
Number of Turns11
Adjustment TypeSide Adjustment
Resistive MaterialCermet
Mounting TypeSurface Mount
Termination StyleJ Lead
Size / DimensionSquare - 0.189" L x 0.181" W x 0.146" H (4.80mm x 4.60mm x 3.70mm)
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement PartSM-42TA103
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

SM-42TA103 is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of SM-42TA103 is new and unused, you can buy SM-42TA103 Copal Electronics Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for SM-42TA103.
