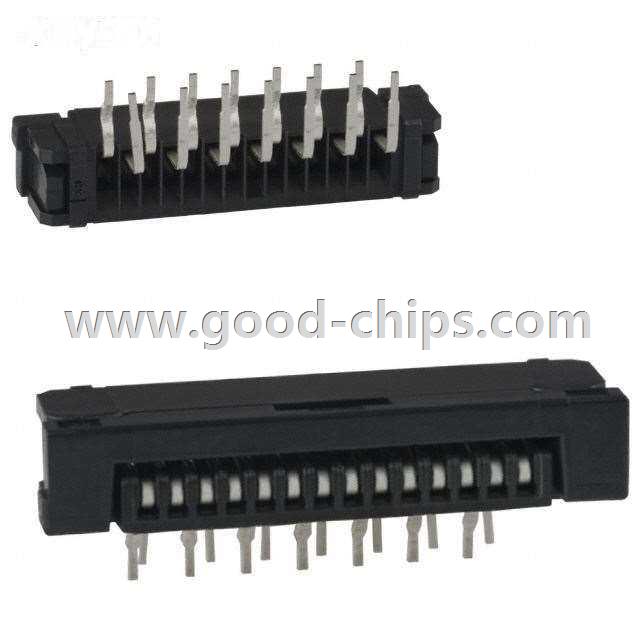

Manufacturer Part Number: | SLW14R-1C7LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | FFC, FPC (Flat Flexible) Connectors |
Available Quantity: | 12621 Pieces |
Unit Price: | Quote by Email |
Description: | 14 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SLW14R-1C7LF Datasheet |
Internal Part Number | 898-SLW14R-1C7LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Flat Flex Connector Overview | |
Featured Product | FFC and FPC Connectors | |
PCN Assembly/Origin | FFC/FPC series 20/Jul/2011 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | SLW-R and SLW-S Series | |
Category | Connectors, Interconnects | |
Family | FFC, FPC (Flat Flexible) Connectors | |
Manufacturer | Amphenol FCI | |
Series | SLW-R | |
Packaging | Tray | |
Part Status | Active | |
Flat Flex Type | FFC, FPC | |
Mounting Type | Through Hole, Right Angle | |
Connector/Contact Type | Contacts, Bottom | |
Number of Positions | 14 | |
Pitch | 0.039" (1.00mm) | |
Termination | Kinked Pin | |
FFC, FCB Thickness | 0.30mm, 0.33mm | |
Height Above Board | 0.157" (4.00mm) | |
Locking Feature | Slide Lock | |
Cable End Type | Straight, Tapered | |
Contact Material | Phosphor Bronze | |
Contact Finish | Tin | |
Housing Material | Polyamide (PA), Nylon, Glass Filled | |
Actuator Material | Polyamide (PA), Nylon, Glass Filled | |
Features | Zero Insertion Force (ZIF) | |
Voltage Rating | 100V | |
Operating Temperature | -55°C ~ 85°C | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 1A | |
Standard Package | 130 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SLW14R-1C7LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SLW14R-1C7LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of SLW14R-1C7LF is new and unused, you can buy SLW14R-1C7LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SLW14R-1C7LF.
