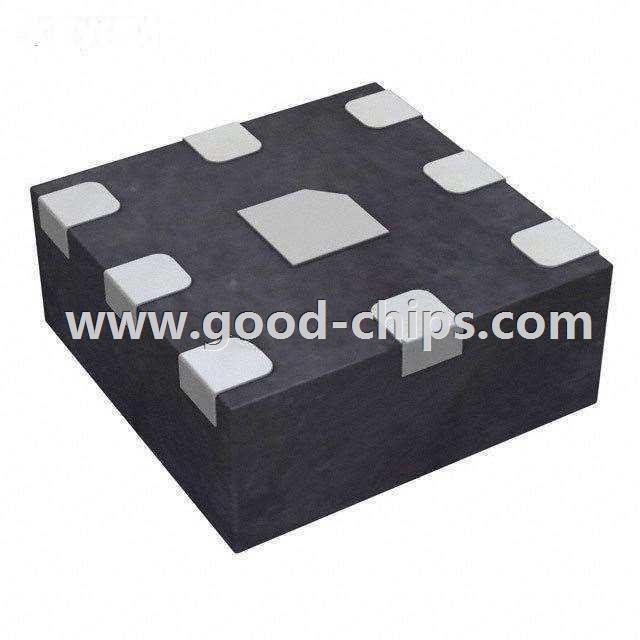

| Manufacturer Part Number: | SKY13522-644LF |
|---|---|
| Manufacturer: | Skyworks Solutions Inc. |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC CDMA, GSM, WCDMA SPDT 3GHz 50 Ohm 8-QFN (2x2) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SKY13522-644LF Datasheet |
| Internal Part Number | 898-SKY13522-644LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | RF Switches Overview | |
| Design Resources | IoT Product Selector | |
| Featured Product | General Purpose RF Switches High Isolation, Broadband RF Switches SKY66111-11 Bluetooth® Low Energy (BLE) Front-End Module | |
| Online Catalog | SKY13522-644LF | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Skyworks Solutions Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | 700MHz | |
| Frequency - Upper | 3GHz | |
| Isolation @ Frequency | 47dB @ 2.2GHz (typ) | |
| Insertion Loss @ Frequency | 0.7dB @ 2.7GHz | |
| IIP3 | 57dBm (typ) | |
| Topology | - | |
| Circuit | SPDT | |
| P1dB | - | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -30°C ~ 90°C | |
| Voltage - Supply | 2.5 V ~ 3.3 V | |
| RF Type | CDMA, GSM, WCDMA | |
| Package / Case | 8-XFQFN Exposed Pad | |
| Supplier Device Package | 8-QFN (2x2) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SKY13522-644LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SKY13522-644LF is in stock for immediate shipping now. We are the distributor of Skyworks Solutions Inc. all series components. The condition of SKY13522-644LF is new and unused, you can buy SKY13522-644LF Skyworks Solutions Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SKY13522-644LF.
